Description

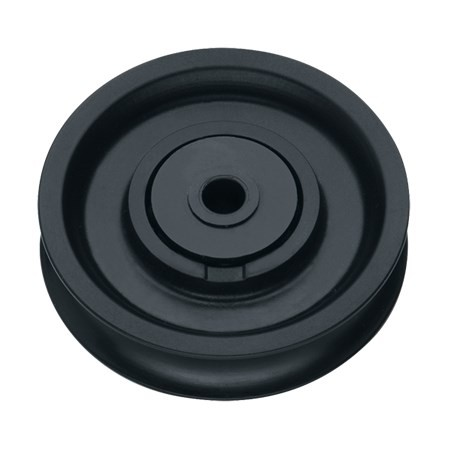

Self-contained sheaves are designed for sailors to use in custom applications. 2760 sheaves are Delrin ® acetal resin with Delrin ® ball bearings. They are scored for rope. Delrin ® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Sheave Ø(mm)57 mm
Sheave Ø(in)2 1/4 in
Width (mm)15 mm
Width (in)5/8 in
Weight (g)25 g
Weight (oz).88 oz
Center pin Ø(mm)6.27 mm
Center pin Ø(in)1/4 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in)3/8 in
Maximum working load (kg)136 kg
Maximum working load (lb)300 lb
Sheave Ø(in)2 1/4 in
Width (mm)15 mm
Width (in)5/8 in
Weight (g)25 g
Weight (oz).88 oz
Center pin Ø(mm)6.27 mm
Center pin Ø(in)1/4 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in)3/8 in
Maximum working load (kg)136 kg
Maximum working load (lb)300 lb
