Description

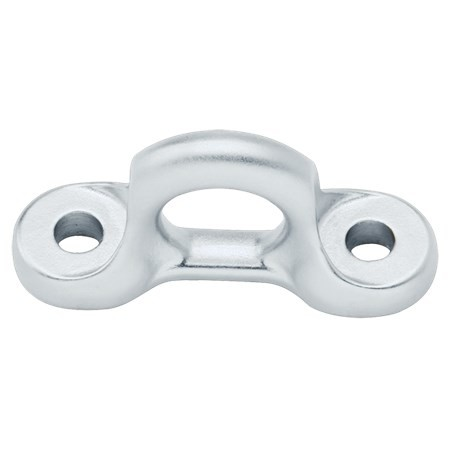

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 2759 is 316 cast stainless steel.
A (mm)56 mm
A (in)2 1/4 in
B (mm)18 mm
B (in)3/4 in
C (mm)38 mm
C (in)1 1/2 in
E (mm)26 mm
E (in)1 in
F (mm)15 mm
F (in)9/16 in
G (mm)16 mm
G (in)5/8 in
Weight (g)38 g
Weight (oz)1.3 oz
Maximum Working Load - angle 1 (kg)1156 kg
Maximum Working Load - angle 1 (lb)2550 lb
Maximum Working Load - angle 2 (kg)1086 kg
Maximum Working Load - angle 2 (lb)2392 lb
Maximum Working Load - angle 3 (kg)1111 kg
Maximum Working Load - angle 3 (lb)2450 lb
Breaking load - angle 1 (kg)2313 kg
Breaking load - angle 1 (lb)5100 lb
Breaking load - angle 2 (kg)2172 kg
Breaking load - angle 2 (lb)4784 lb
Breaking load - angle 3 (kg)2222 kg
Breaking load - angle 3 (lb)4900 lb
Fasteners (mm)6 mm
Fasteners (in)1/4 in
A (in)2 1/4 in
B (mm)18 mm
B (in)3/4 in
C (mm)38 mm
C (in)1 1/2 in
E (mm)26 mm
E (in)1 in
F (mm)15 mm
F (in)9/16 in
G (mm)16 mm
G (in)5/8 in
Weight (g)38 g
Weight (oz)1.3 oz
Maximum Working Load - angle 1 (kg)1156 kg
Maximum Working Load - angle 1 (lb)2550 lb
Maximum Working Load - angle 2 (kg)1086 kg
Maximum Working Load - angle 2 (lb)2392 lb
Maximum Working Load - angle 3 (kg)1111 kg
Maximum Working Load - angle 3 (lb)2450 lb
Breaking load - angle 1 (kg)2313 kg
Breaking load - angle 1 (lb)5100 lb
Breaking load - angle 2 (kg)2172 kg
Breaking load - angle 2 (lb)4784 lb
Breaking load - angle 3 (kg)2222 kg
Breaking load - angle 3 (lb)4900 lb
Fasteners (mm)6 mm
Fasteners (in)1/4 in
