Description

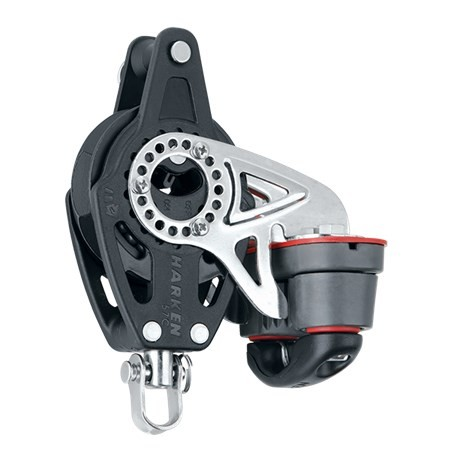

Maximum working loads and breaking loads for blocks based on cam strengths.
Sheave Ø(mm)57 mm
Sheave Ø(in)2 1/4 in
Length (mm)125 mm
Length (in)4 15/16 in
Weight (g)255 g
Weight (oz)9 oz
Shackle pin Ø(mm)5 mm
Shackle pin Ø(in)3/16 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Maximum working load (kg)272 kg
Maximum working load (lb)600 lb
Breaking load (kg)680 kg
Breaking load (lb)1500 lb
Holding power10:1
FootnoteMaximum working loads and breaking loads for blocks based on cam strengths.
