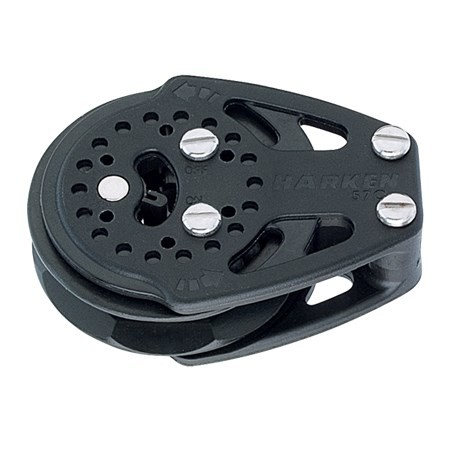

Description
Includes fasteners and mounting pad.
Sheave Ø(mm)57 mm
Sheave Ø(in)2 1/4 in
Length (mm)83 mm
Length (in)3 1/4 in
Weight (g)71 g
Weight (oz)2.5 oz
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Fasteners (mm)M4 mm
Maximum working load (kg)227 kg
Maximum working load (lb)500 lb
Breaking load (kg)907 kg
Breaking load (lb)2000 lb
Holding power10:1
FootnoteIncludes fasteners and mounting pad.
