Description

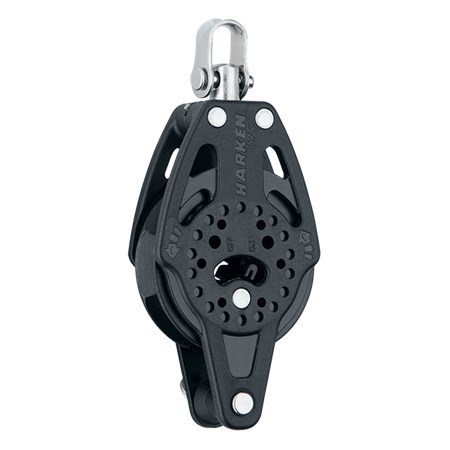

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Sheave Ø(mm)57 mm
Sheave Ø(in)2 1/4 in
Length (mm)125 mm
Length (in)4 15/16 in
Weight (g)94 g
Weight (oz)3.3 oz
Shackle pin Ø(mm)5 mm
Shackle pin Ø(in)3/16 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Maximum working load (kg)227 kg
Maximum working load (lb)500 lb
Breaking load (kg)907 kg
Breaking load (lb)2000 lb
Holding power10:1
Sheave Ø(in)2 1/4 in
Length (mm)125 mm
Length (in)4 15/16 in
Weight (g)94 g
Weight (oz)3.3 oz
Shackle pin Ø(mm)5 mm
Shackle pin Ø(in)3/16 in
Maximum line Ø(mm)10 mm
Maximum line Ø(in) 3/8 in
Maximum working load (kg)227 kg
Maximum working load (lb)500 lb
Breaking load (kg)907 kg
Breaking load (lb)2000 lb
Holding power10:1
