Description

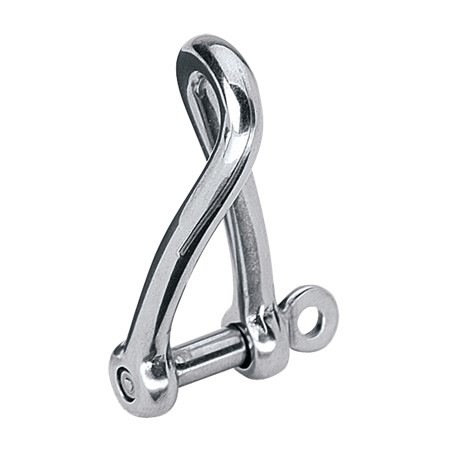

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Twist shackles are forged with a 90-degree twist so the two attachment points can be perpendicular without torquing.
Shackle pin Ø(mm)6 mm
Shackle pin Ø(in)1/4 in
Weight (g)32 g
Weight (oz)1.12 oz
A (mm)29 mm
A (in)1 1/8 in
B (mm)12 mm
B (in) 1/2 in
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (kg)1500 kg
Breaking load (lb)3300 lb
Shackle pin Ø(in)1/4 in
Weight (g)32 g
Weight (oz)1.12 oz
A (mm)29 mm
A (in)1 1/8 in
B (mm)12 mm
B (in) 1/2 in
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (kg)1500 kg
Breaking load (lb)3300 lb
