Description

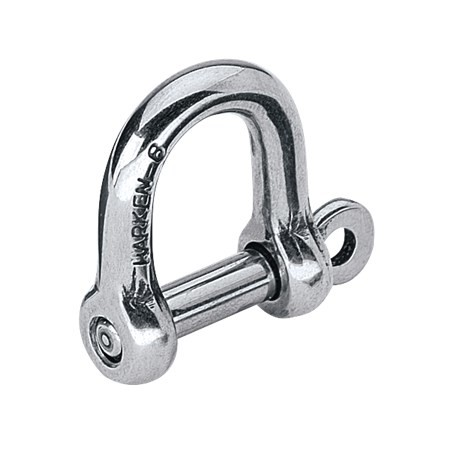

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.
Shackle pin Ø(mm)6 mm
Shackle pin Ø(in)1/4 in
Weight (g)22.5 g
Weight (oz)0.8 oz
A (mm)19 mm
A (in)3/4 in
B (mm)14 mm
B (in) 9/16 in
Maximum working load (kg)1260 kg
Maximum working load (lb)2770 lb
Breaking load (kg)2510 kg
Breaking load (lb)5540 lb
