Description

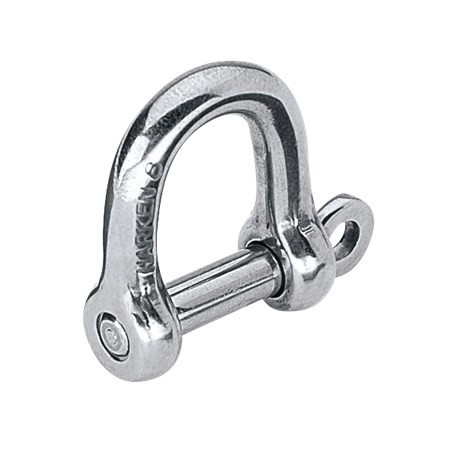

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.
Shackle pin Ø(mm)6 mm
Shackle pin Ø(in)1/4 in
Weight (g)25 g
Weight (oz)0.88 oz
A (mm)19 mm
A (in)3/4 in
B (mm)14 mm
B (in) 9/16 in
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (kg)1500 kg
Breaking load (lb)3300 lb
Shackle pin Ø(in)1/4 in
Weight (g)25 g
Weight (oz)0.88 oz
A (mm)19 mm
A (in)3/4 in
B (mm)14 mm
B (in) 9/16 in
Maximum working load (kg)750 kg
Maximum working load (lb)1650 lb
Breaking load (kg)1500 kg
Breaking load (lb)3300 lb
