Description

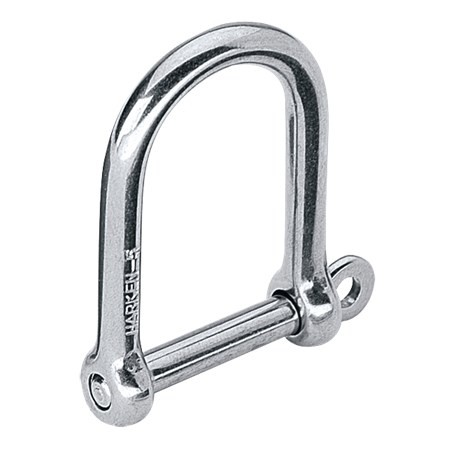

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Large open shackles have a similar shape to "D" shackles but are proportionally wider for their length.
Shackle pin Ø(mm)5 mm
Shackle pin Ø(in)3/16 in
Weight (g)25 g
Weight (oz)0.88 oz
A (mm)33 mm
A (in)1 5/16 in
B (mm)20 mm
B (in) 13/16 in
Maximum working load (kg)350 kg
Maximum working load (lb)770 lb
Breaking load (kg)1000 kg
Breaking load (lb)2200 lb
