Description
Breaking load based on use of solid 304 stainless shafts.

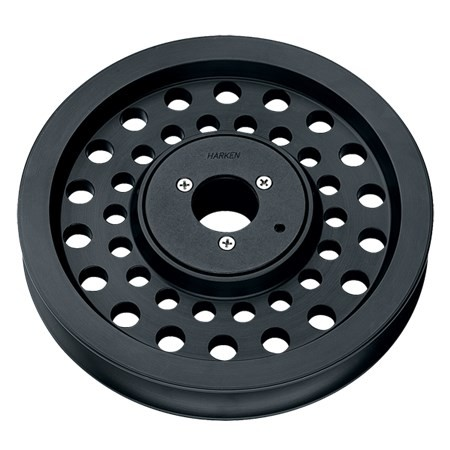

Sheave Ø(mm)203 mm
Sheave Ø(in)8 in
Width (mm)35 mm
Width (in)1 3/8 in
Weight (g)1300 g
Weight (oz)46 oz
Center pin Ø(mm)31.7 mm
Center pin Ø(in)1 1/4 in
Maximum line Ø(mm)22 mm
Maximum line Ø(in)7/8 in
Maximum wire Ø(mm)12 mm
Maximum wire Ø(in) 1/2 in
Maximum working load (kg)16783 kg
Maximum working load (lb)37000 lb
Breaking load (kg)45360 kg
Breaking load (lb)100000 lb
FootnoteBreaking load based on use of solid 304 stainless shafts.
