Description

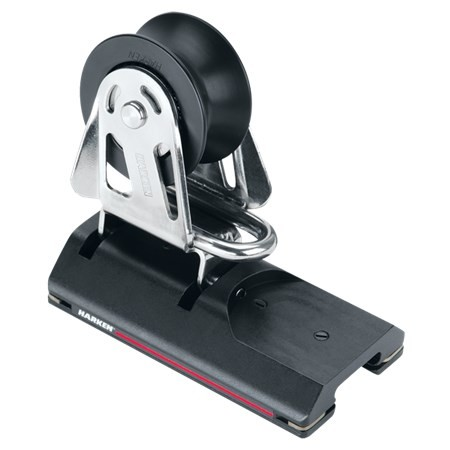

Use furling outhaul cars with in-mast or behind-the-mast furlers on boats up to 13.5 m (45 ft). Sheave carriers pivot side-to-side to accommodate changing lead angles.
Sheave Ø(mm)51 mm
Sheave Ø(in)2 in
Length (mm)133 mm
Length (in)5 1/4 in
Width (mm)70 mm
Width (in)2 3/4 in
Weight (g)680 g
Weight (oz)24 oz
Maximum working load (kg)1043 kg
Maximum working load (lb)2300 lb
Maximum sail area - monohull (m ²)28 m ²
Maximum sail area - monohull (ft ²)300 ft ²
Use with track/railR27
Sheave Ø(in)2 in
Length (mm)133 mm
Length (in)5 1/4 in
Width (mm)70 mm
Width (in)2 3/4 in
Weight (g)680 g
Weight (oz)24 oz
Maximum working load (kg)1043 kg
Maximum working load (lb)2300 lb
Maximum sail area - monohull (m ²)28 m ²
Maximum sail area - monohull (ft ²)300 ft ²
Use with track/railR27
