Description

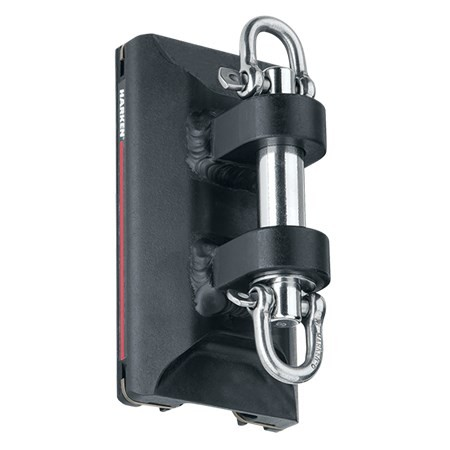

Harken ® spinnaker pole cars feature recirculating ball bearings to permit adjustment under any load. They roll freely on low-beam traveler track to allow crew to adjust for optimal sail shape. Midrange and Big Boat cars accept two popular toggle studs and Harken bell end fittings.
Maximum spinnaker area (m ²)140 m ²
Maximum spinnaker area (ft ²)1500 ft ²
Length (mm)132 mm
Length (in)5 3/16 in
Width (mm)70 mm
Width (in)2 3/4 in
Weight (g)635 g
Weight (oz)22.4 oz
Pin Ø(mm)12.7 mm
Pin Ø(in)1/2 in
A (mm)25 mm
A (in)1 in
B (mm)51 mm
B (in)2 in
Maximum working load (kg)1043 kg
Maximum working load (lb)2300 lb
Use with track/railR27
Pole endForespar ® toggle
Maximum spinnaker area (ft ²)1500 ft ²
Length (mm)132 mm
Length (in)5 3/16 in
Width (mm)70 mm
Width (in)2 3/4 in
Weight (g)635 g
Weight (oz)22.4 oz
Pin Ø(mm)12.7 mm
Pin Ø(in)1/2 in
A (mm)25 mm
A (in)1 in
B (mm)51 mm
B (in)2 in
Maximum working load (kg)1043 kg
Maximum working load (lb)2300 lb
Use with track/railR27
Pole endForespar ® toggle
