Description

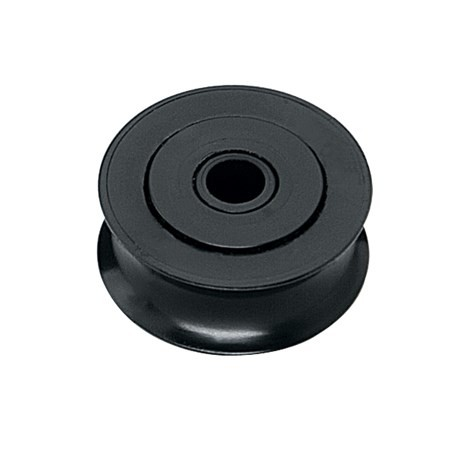

Self-contained sheaves are designed for sailors to use in custom applications. The Micro, Bullet, and Big Bullet sheaves are Delrin ® with Delrin ® ball bearings. They are scored for rope. Delrin ® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Sheave Ø(mm)29 mm
Sheave Ø(in)1 1/8 in
Width (mm)12 mm
Width (in) 1/2 in
Weight (g)7 g
Weight (oz)0.25 oz
Center pin Ø(mm)6.27 mm
Center pin Ø(in) 1/4 in
Maximum line Ø(mm)8 mm
Maximum line Ø(in)5/16 in
Maximum working load (kg)136 kg
Maximum working load (lb)300 lb
Sheave Ø(in)1 1/8 in
Width (mm)12 mm
Width (in) 1/2 in
Weight (g)7 g
Weight (oz)0.25 oz
Center pin Ø(mm)6.27 mm
Center pin Ø(in) 1/4 in
Maximum line Ø(mm)8 mm
Maximum line Ø(in)5/16 in
Maximum working load (kg)136 kg
Maximum working load (lb)300 lb
