Description

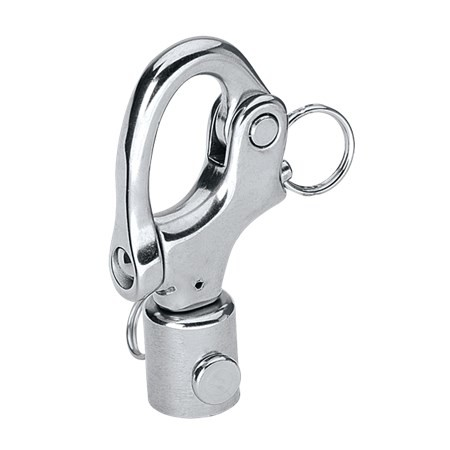

Snap shackles provide one-handed operation for temporary applications that require speed and easy release. Harken ® snap shackles also fit a wide variety of blocks and make them removable.
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Weight (g)113 g
Weight (oz)4 oz
A (mm)78 mm
A (in)3 1/16 in
Maximum working load (kg)816 kg
Maximum working load (lb)1800 lb
Breaking load (kg)1633 kg
Breaking load (lb)3600 lb
Shackle pin Ø(in)5/16 in
Weight (g)113 g
Weight (oz)4 oz
A (mm)78 mm
A (in)3 1/16 in
Maximum working load (kg)816 kg
Maximum working load (lb)1800 lb
Breaking load (kg)1633 kg
Breaking load (lb)3600 lb
