Description

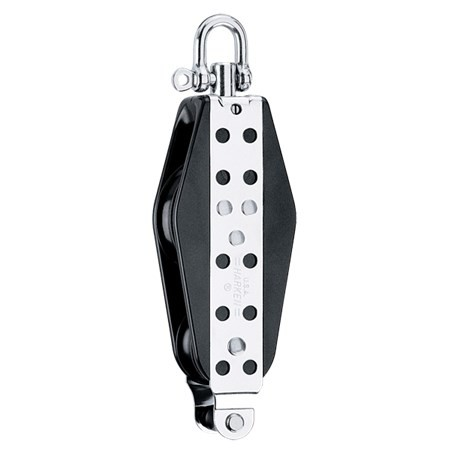

Midrange blocks ' robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
Sheave Ø(mm)76 mm
Sheave Ø(in)3 in
Length (mm)241 mm
Length (in)9 1/2 in
Weight (g)510 g
Weight (oz)18 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Maximum working load (kg)816 kg
Maximum working load (lb)1800 lb
Breaking load (kg)2268 kg
Breaking load (lb)5000 lb
Sheave Ø(in)3 in
Length (mm)241 mm
Length (in)9 1/2 in
Weight (g)510 g
Weight (oz)18 oz
Shackle pin Ø(mm)8 mm
Shackle pin Ø(in)5/16 in
Maximum line Ø(mm)14 mm
Maximum line Ø(in) 9/16 in
Maximum working load (kg)816 kg
Maximum working load (lb)1800 lb
Breaking load (kg)2268 kg
Breaking load (lb)5000 lb
