Description

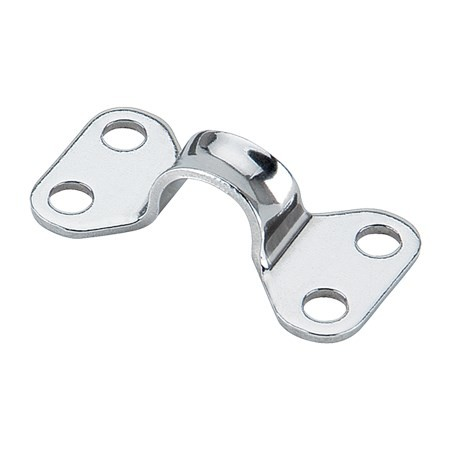

Eyestraps are useful accessories. They form light-duty mounting bases for blocks, serve as lash-down points, and can be used for fairleads.
A (mm)57 mm
A (in)2 1/4 in
B (mm)16 mm
B (in)5/8 in
C (mm)45 mm
C (in)1 3/4 in
D (mm)16 mm
D (in)5/8 in
E (mm)11 mm
E (in)7/16 in
F (in)1 1/8 in
F (mm)29 mm
Height above cam (mm)16 mm
Height above cam (in)5/8 in
Length (mm)57 mm
Length (in)2 1/4 in
H (in)5/8 in
H (mm)16 mm
Weight (g)28 g
Weight (oz)1 oz
Fasteners (mm)6 RH mm
Fasteners (in)1/4 RH in
Fastener spacing (mm)45 mm
Fastener spacing (in)1 3/4 in
Breaking load (kg)2722 kg
Breaking load (lb)6000 lb
