Description

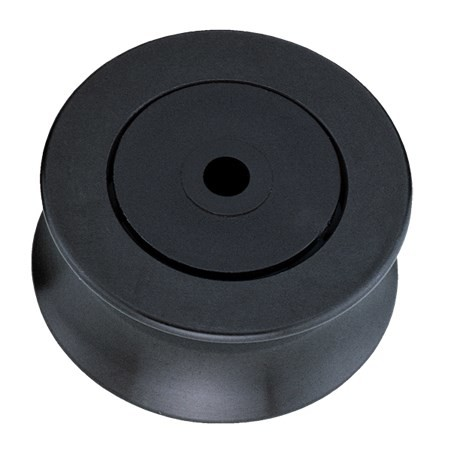

Self-contained sheaves are designed for sailors to use in custom applications. Midrange sheaves come in either Delrin ® or aluminum for wire. Delrin ® is a registered trademark of E. I. du Pont de Nemours and Company or its affiliates.
Sheave Ø(mm)51 mm
Sheave Ø(in)2 in
Width (mm)22 mm
Width (in) 7/8 in
Weight (g)43 g
Weight (oz)1.5 oz
Center pin Ø(mm)6.27 mm
Center pin Ø(in) 1/4 in
Maximum line Ø(mm)16 mm
Maximum line Ø(in)5/8 in
Maximum working load (kg)227 kg
Maximum working load (lb)500 lb
Sheave Ø(in)2 in
Width (mm)22 mm
Width (in) 7/8 in
Weight (g)43 g
Weight (oz)1.5 oz
Center pin Ø(mm)6.27 mm
Center pin Ø(in) 1/4 in
Maximum line Ø(mm)16 mm
Maximum line Ø(in)5/8 in
Maximum working load (kg)227 kg
Maximum working load (lb)500 lb
