Description

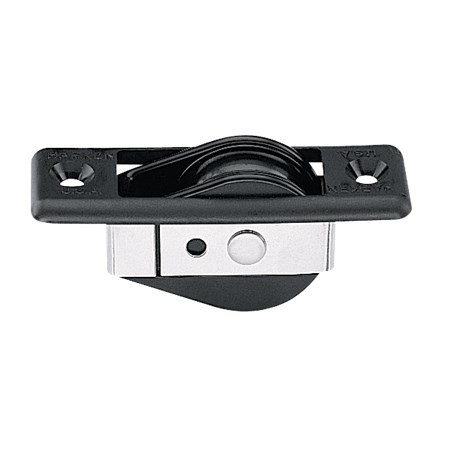

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Wire Bullet blocks use roller bearings to carry higher loads and feature hardcoat-anodized PTFE impregnated aluminum sheaves for strength and corrosion resistance.
Sheave Ø(mm)29 mm
Sheave Ø(in)1 1/8 in
Length (mm)76 mm
Length (in)3 in
Weight (g)35 g
Weight (oz)1.25 oz
Maximum line Ø(mm)8 mm
Maximum line Ø(in) 5/16 in
Fasteners (mm)5 FH mm
Fasteners (in)#10 FH in
Mounting hole spacing (mm)57 mm
Mounting hole spacing (in)2 1/4 in
Cutout (mm) 19 x 44 mm
Cutout (in) 3/4 x 1 3/4 in
Maximum working load (kg)227 kg
Maximum working load (lb)500 lb
Breaking load (kg)907 kg
Breaking load (lb)2000 lb
Sheave Ø(in)1 1/8 in
Length (mm)76 mm
Length (in)3 in
Weight (g)35 g
Weight (oz)1.25 oz
Maximum line Ø(mm)8 mm
Maximum line Ø(in) 5/16 in
Fasteners (mm)5 FH mm
Fasteners (in)#10 FH in
Mounting hole spacing (mm)57 mm
Mounting hole spacing (in)2 1/4 in
Cutout (mm) 19 x 44 mm
Cutout (in) 3/4 x 1 3/4 in
Maximum working load (kg)227 kg
Maximum working load (lb)500 lb
Breaking load (kg)907 kg
Breaking load (lb)2000 lb
