Description
The GEBO standard range of hatches are GEBO's traditional PREMIUM range of hatches.
They have a smooth on-deck profile and the frame has been extended to fit flush against the base mounting. A deep groove in the lower frame keeps water from coming in when the hatch is open. 100% watertight when closed.The Gebo standard range is available in 2 styles - with 5mm deep inner fl ange - or No flange - where the base sits flat on deck.
Made from marine grade anodised aluminium giving long life, excellent
corrosion resistance, durability and low maintenance requirements
- All GEBO hatches are CE class-A ocean certified
- 2 year warranty under normal use
- 40mm height above deck. Silicone rubber seals
- 2 styles - Internal fl ange 5mm deep - or NO flange style
- Durable 10mm to 15mm thick smoked grey acrylic panels
- Heavy duty no-snag adjustable friction hinges hold the hatch open in any position up to 180 deg, including a fully locked ventilation position
- Not a single catch, lip or knob for sails or rope lines to get caught on
- Inside / outside opening handles with sturdy blue locking button
- All hinges and metal parts are made from non-corrosive materials
- Mosquito/fl y screens, inner dress rims and spare parts available
- Hatches WITH flange have a 55mm cut-out radius
- Acrylic is 10mm thick.
Hatches shipped direct from our supplier.

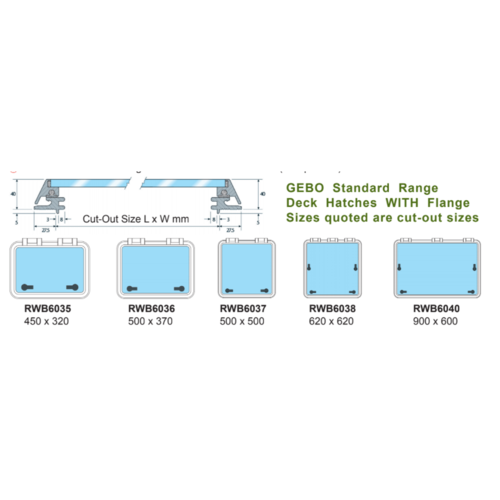

| Part No | Cut Out | Overall Size L X W | Radius |
| RWB 6035 | 450 x 320 | 505 x 375 | 83 |
| RWB 6036 | 500 x 370 | 555 x 425 | 83 |
| RWB 6037 | 500 x 500 | 555 x 555 | 83 |
| RWB6038 | 620 x 620 | 675 x 675 | 83 |
| RWB 6040 | 900 x 900 | 955 x 655 | 83 |
