Description
SHIPPED FROM OUR SUPPLIER TO YOU.

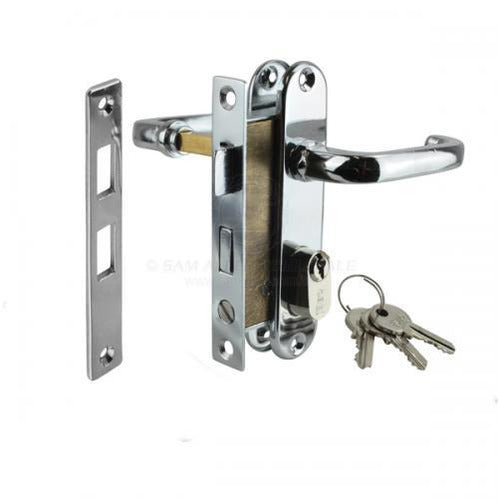

• Brass mortise lock complete with oval cylinders and flat striking plate.
• Chrome plated brass.
• Cast brass and stainless steel springs.
• Supplied with 3 keys.
• Spindle shaft 8mm2.
• Lock + Striker Plate mount holes 4 x 4mm.
• Face Plate mount holes 4 x 3mm.
| Lock (D x W x H) | 48mm x 17mm x 113mm |
| Lock Cut Out (W x D x H) | 46mm x 10mm x 83mm |
| Door Thickness | 25mm - 35mm |
| Type | Mortise |
| Handle (L) | 70mm |
| Face Plate (W x H) | 25mm x 120mm |
