Description

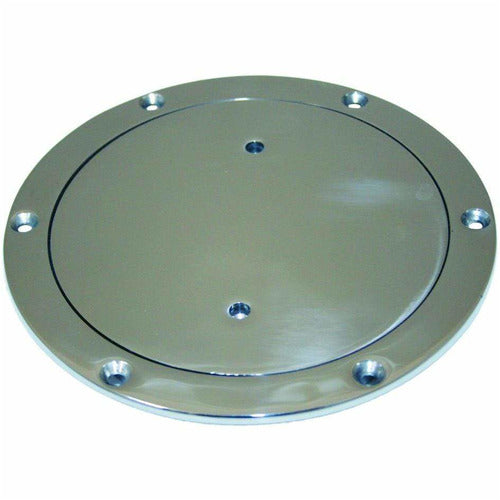

Heavy duty cast polished 316 grade stainless steel deck
plates complete with rubber O ring. The deck plate centre

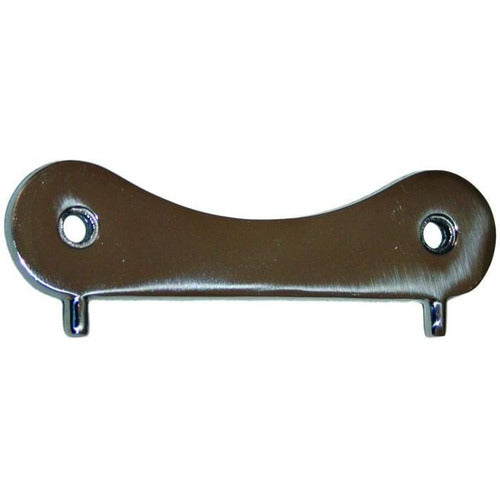

screws out with the stainless steel opening key provided.
Sz1-RWB2783 100mm (4”) inside hole size
140mm outside diameter. 111mm hole cut-out.
4 x 5mm countersunk fastening holes
Sz 2 RWB2784 125mm (5”) inside hole size
170mm outside diameter. 138mm hole cut-out.
6 x 5mm countersunk fastening holes
Sz 3 RWB2785 150mm (6”) inside hole size
205mm outside diameter. 165mm hole cut-out.
6 x 5mm countersunk fastening holes
