Description

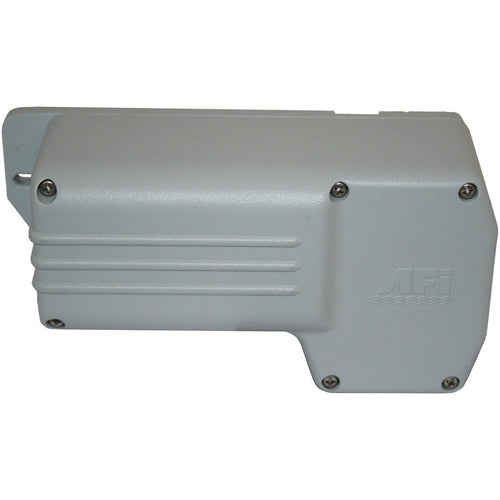

These AFI heavy duty wiper motors suit a variety of arms and blades
shown on following pages. The 2.5 motor will power up to 600mm
arm/blade length.
shown on following pages. The 2.5 motor will power up to 600mm
arm/blade length.
- 2 Powerful motor sizes available. Fully waterproof
- Fully sealed grey powder coated aluminium waterproof housing

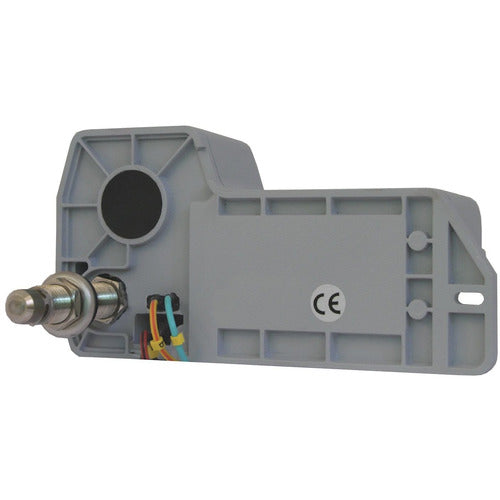

- 50mm length solid chrome brass drive shaft and knurled nut
- 2 speed motor (can be wired for single speed)
- Coast to park feature. Adjustable right or left park
- RF shielded circuitry
- 80 or 110 deg sweep angle. Adjustable 45, 60, 80 or 110 degrees
- Includes sealed 150mm length wires with fuse & fuse holder
- Full 3 year limited warranty. CE certified.
Pantographic arms will only function properly with wiper motor sweep
angles of 80 degree or less. Wiper motor angle can be easily adjusted
- AFI 2.5 Wiper Motor Powers up to 600mm (24") length arm and blade combination. Available in 12v or 24v. 80 or 110 degree sweep. Sweep is also adjustable. No load current to 1.6 amp. Stall current 10.5 amps. Stall torque 160 kgf/cm 15.7 Nm Length : 201mm, width : 108mm Depth : 77mm - plus drive arm.
- RWB5802 12 volt 110 degree 2.5 Motor
- RWB5803 12 volt 80 degree 2.5 Motor
- RWB5804 24 volt 110 degree 2.5 Motor
