Description

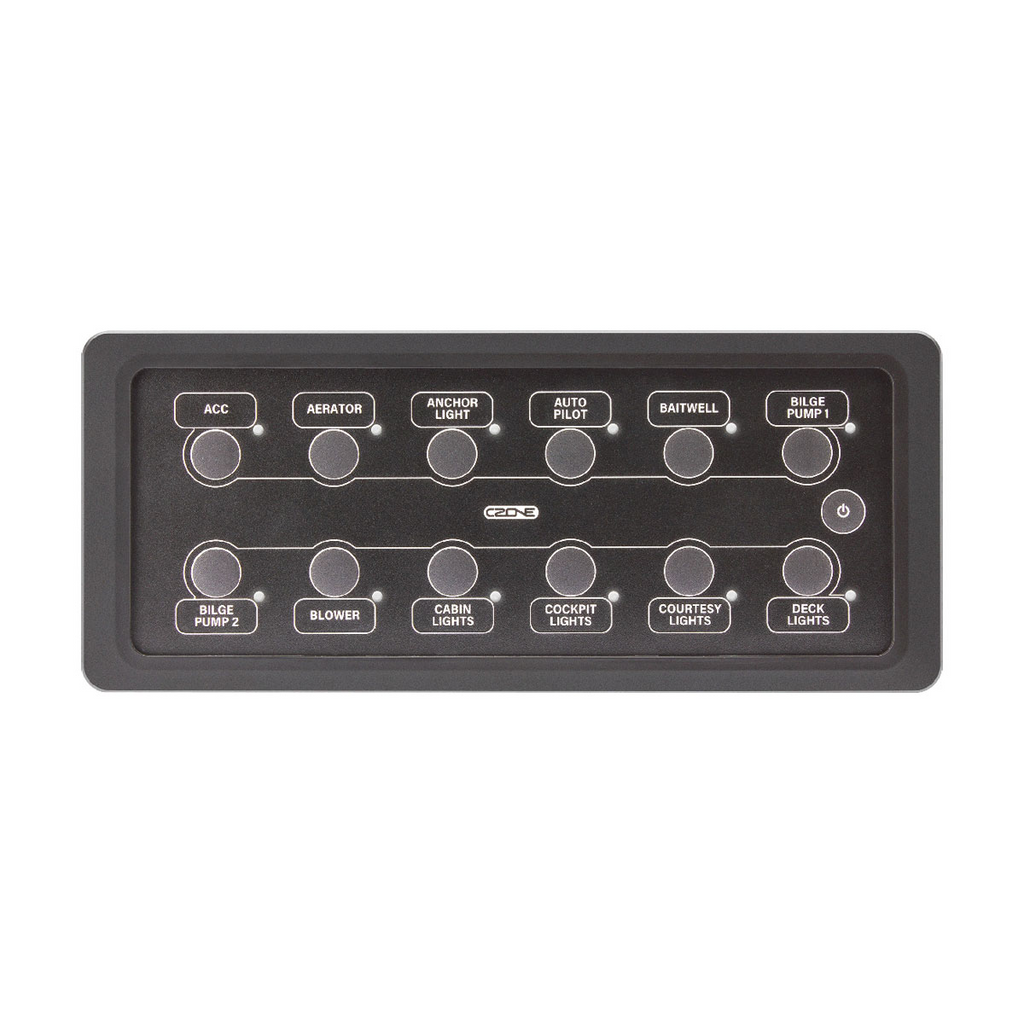

The CZone Waterproof Keypad range Features dimmable RGB circuit backlighting in a robust IPX7 waterproof enclosure and is available in portrait and landscape orientations.
Simplify dashboard installations by removing wiring clutter with a single network cable. Front mount installation with a single 2 1/16†(52mm) holesaw, or rear mount to achieve a flat mount glass dash style look.
Keypads ship with a standard label sheet for personalised circuit labeling.
Features
IPX7 submersible
Circuit in operation LED's with blown fuse fault indication
Dimmable RGB circuit backlighting
Low profile with 3 mounting options - front, rear and flush mount
Easy hole saw installation with single plug connection
Specifications
| WEIGHT | 155G (0.34LBS) |
|---|
| Power consumption max | 95mA |
| Power consumption standby | 1.8mA |
| NMEA2000 connectivity | 1 x CAN Micro-C port |
| Warranty period | 2 years |
| Operating temperature range | -15C to +55C |
| Storage temperature range | -40C to +85C |
| Dimensions W x H x D | 77 x 182 x 32mm (3.03 x 7.16 x 1.26”) |
| Mounting type |
Front and rear mount |
| Ingress protection | IPX7 |
| Compliance | CE, ABYC, NMEA, ISO8846/SAEJ1171 Ignition Protected |
| Backlight color | RGB LED with dimming |
| Supply voltage | 9-16V via CAN |
| Interface | Tactile Dome/Keypad |
