Description

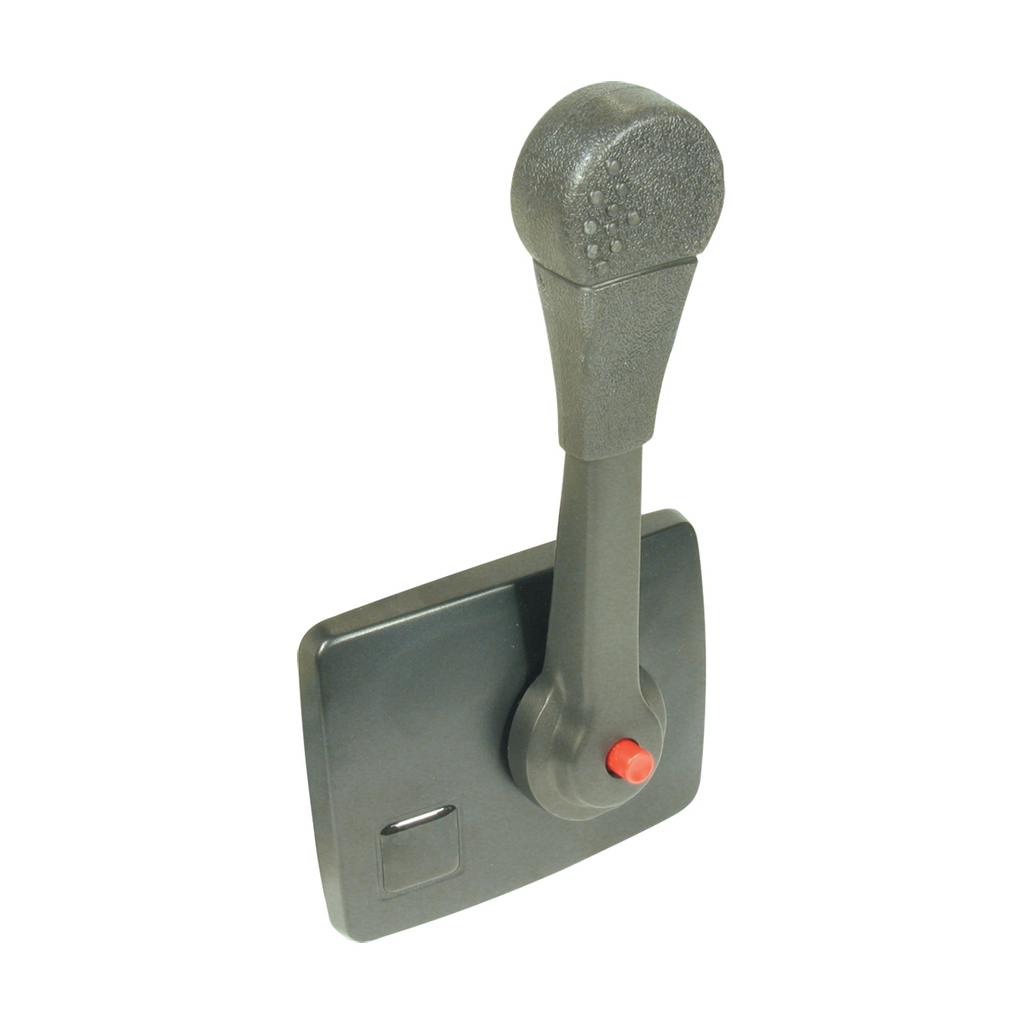

Dual Function Control
Side mount single lever control, particularly suited to sail boats. Suitable for use with outboards, sail drives, small inboards with mechanical shift and larger inboards with hydraulic gearboxes.
Features
Flush cockpit side mounting for sail boats
Smooth control lever reduces the chance of sheets, halyards and clothing catching
Lever operates both shift and throttle
Mounts horizontally or vertically on port or starboard
Easy distinctive action with positive detent for shifts
Adjustable throttle friction
Push button disengagement of shift for neutral throttle warm up
Can only shift at low RPM thereby protecting gearbox
Dual station capability (requires exchangers - refer page 1238)
Cables
Accepts universal 3300/33C series cables, CC230, CC330, CC332, CX632 and CCX633.
Materials
Die-cast zinc alloy frame
Gold passivated steel link plates
High impact ABS dress cover
BLA CodeDescription
301018B700SS side mount control
Accessories
301025 Optional neutral safety switch
