Description
Dual Function Control

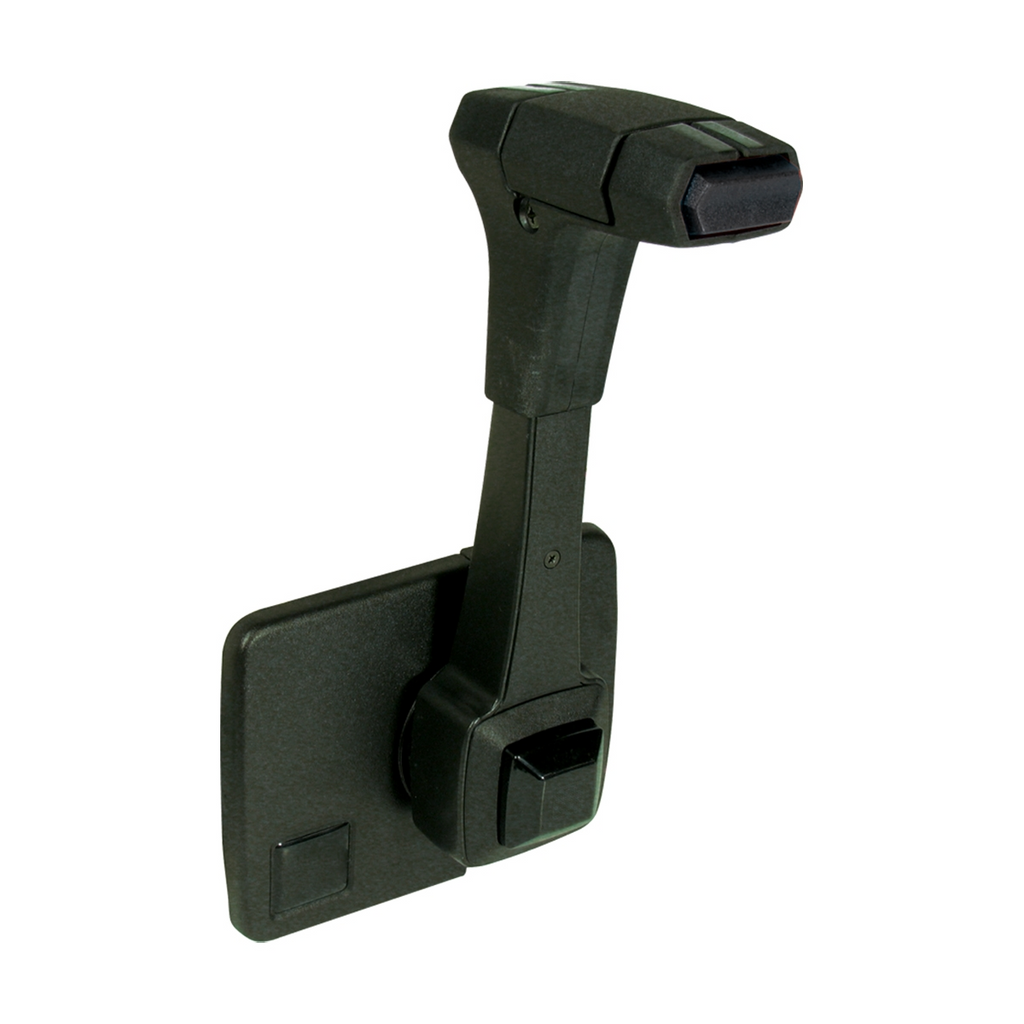

Side mount, single lever, compact control, suitable for use with outboards, stern drives and inboards with hydraulic gear boxes.
Features
Lever operates both shift and throttle
Mounts horizontally or vertically on port or starboard
Easy distinctive action with positive detent for shifts
Adjustable throttle friction
Push button disengagement of shift for neutral throttle warm up
Can only shift at low RPM thereby protecting gearbox
Dual station capability (requires exchangers - refer page 1238)
Optional neutral safety switch to ensure engine start can only occur when in neutral
Cables
Accepts universal 3300/33C series cables, CC230, CC330, CC332, CCX632 and CCX633.
Materials
Die-cast zinc alloy frame
Gold passivated steel link plates
High impact ABS dress covers
Accessories
301025 Optional neutral safety switch
