Description

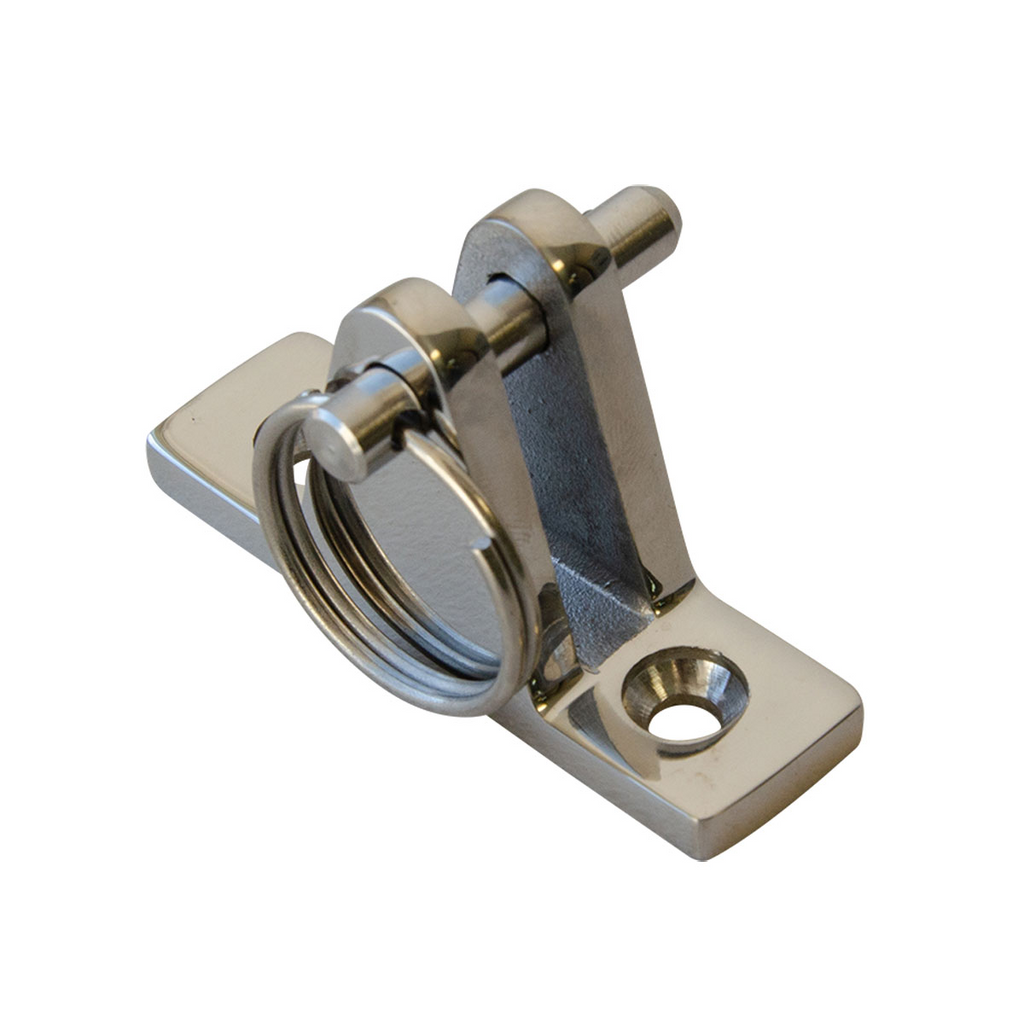

Available to connect canopy at 90º to deck or at 10º off square to deck. Quick release option also available.
| BLA CODE | MOUNT | QUICK RELEASE | BASE DIM. MM | HEIGHT MM | B DIA. MM | C MM | MOUNT SCREWS MM |
|---|
| 195051 | 90° | Yes | 60 x 19 | 36 | 6 | 8 | 5 c/s |
| 195053 | 10° | Yes | 60 x 19 | 36 | 6 | 8 | 5 c/s |
| 195054 | 90° | No | 62 x 18 | 36 | 6 | 7 | 5 c/s |
| 195056 | 10° | No | 57 x 20 | 36 | 6 | 7 | 5 c/s |
