Description

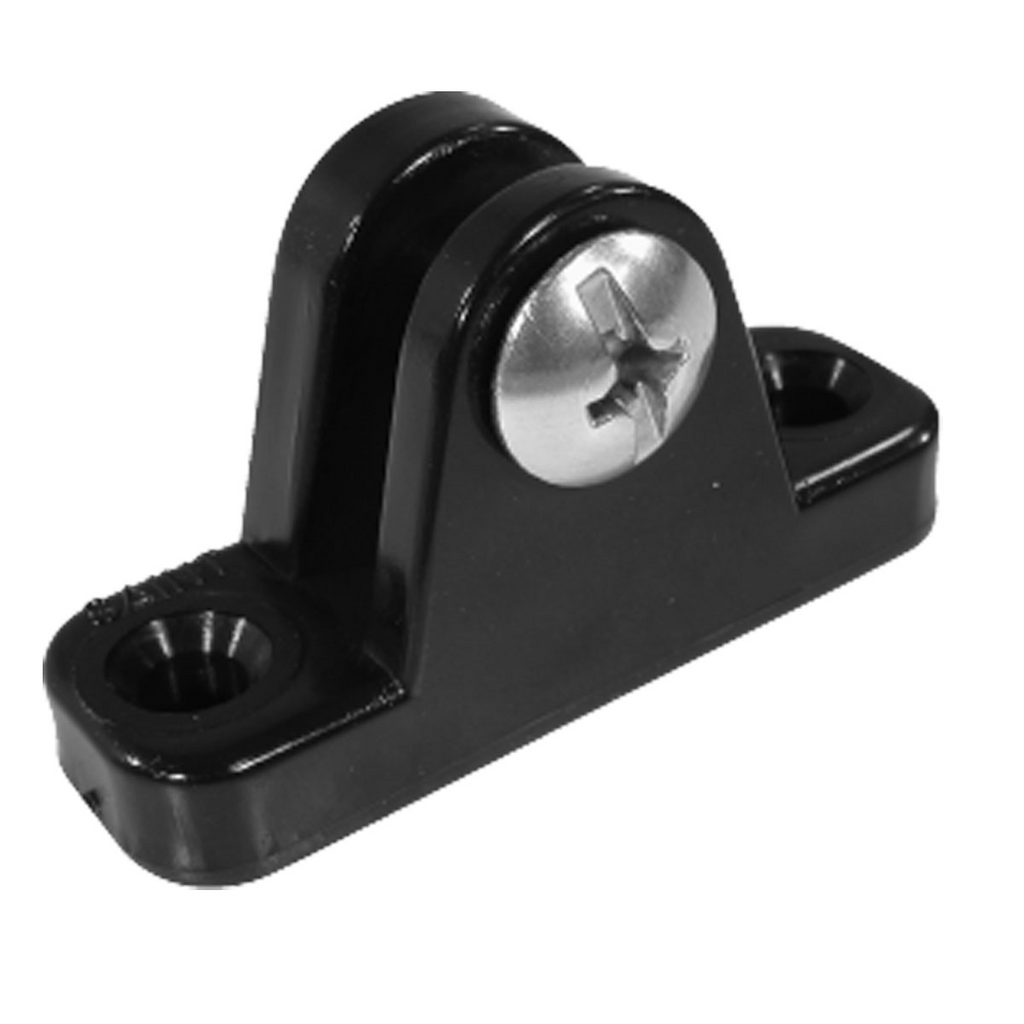

195040 and 195041 mount canopies at 90º to deck, however the inherent flex properties of nylon compensates for installations of up to 10º off square. 195042 it incorporates a stainless steel nut insert for additional thread security.
| BLA CODE | COLOUR | BASE DIM. MM | HEIGHT MM | B DIA. MM | C MM | MOUNT SCREWS MM |
|---|
| 195040 | Black | 55 x 20 | 20 | 5 | 7 | 4 c/s |
| 195041 | White | 55 x 20 | 20 | 5 | 7 | 4 c/s |
| 195042 | Black | 60 x 20 | 30 | 6 | 8 | 5 c/s |
