Description

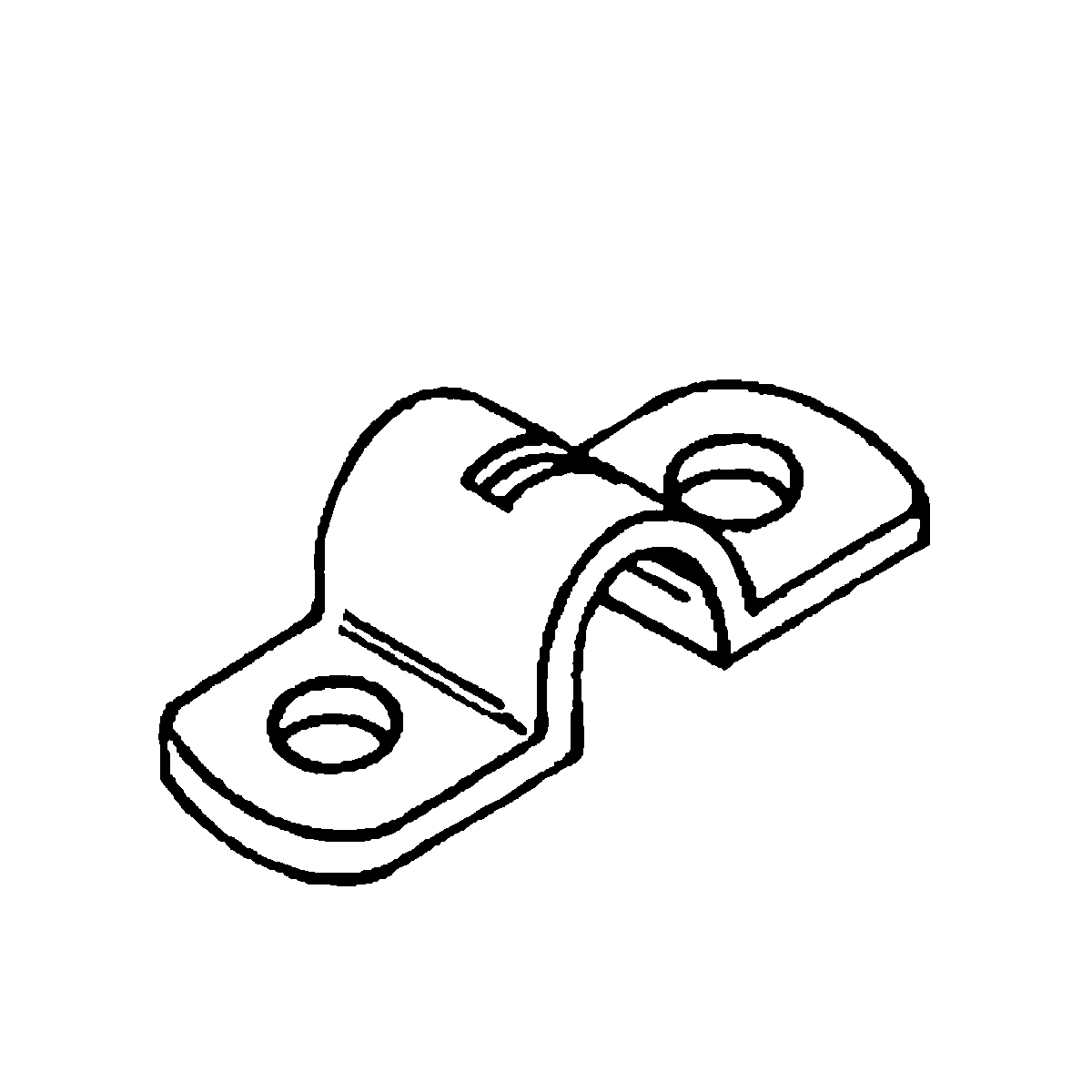

Used to fasten the outer casing of 33, 43 and 64 series control Cables with clamp type hubs. Available as separate components or as clamp and shim assemblies. Passivated steel construction, 309782 only is manufactured of stainless steel.
| BLA CODE | MATERIALS | CABLE SERIES | A MM | B MM | C MM | D MM | E MM |
|---|
| Clamps | |||||||
| 309780 | Steel | 33 | 9.5 | 25 | 38 | 13 | 5 |
| 309782 | S/S | 33 | 9.5 | 22 | 33 | 13 | 5 |
| 309784 | Steel | 43 | 12.7 | 25 | 38 | 13 | 5 |
| Shims | |||||||
| 309800 | Steel | 33 & 43 | 25 | 38 | 13 | 5 | |
| Clamps & Shims | |||||||
| 309812 | Steel | 33 | 9.5 | 25 | 38 | 12.7 | 5 |
| 309814 | Steel | 33 | 9.5 | 25 | 35 | 13 | 5 |
| 309815 | S/S | 33 | 9.5 | 25 | 35 | 13 | 5 |
| 309816 | Steel | 43 | 12.7 | 25 | 35 | 13 | 5 |
| 309818 | Steel | 63 | 14.3 | 32 | 45 | 19 | 7 |
