Description

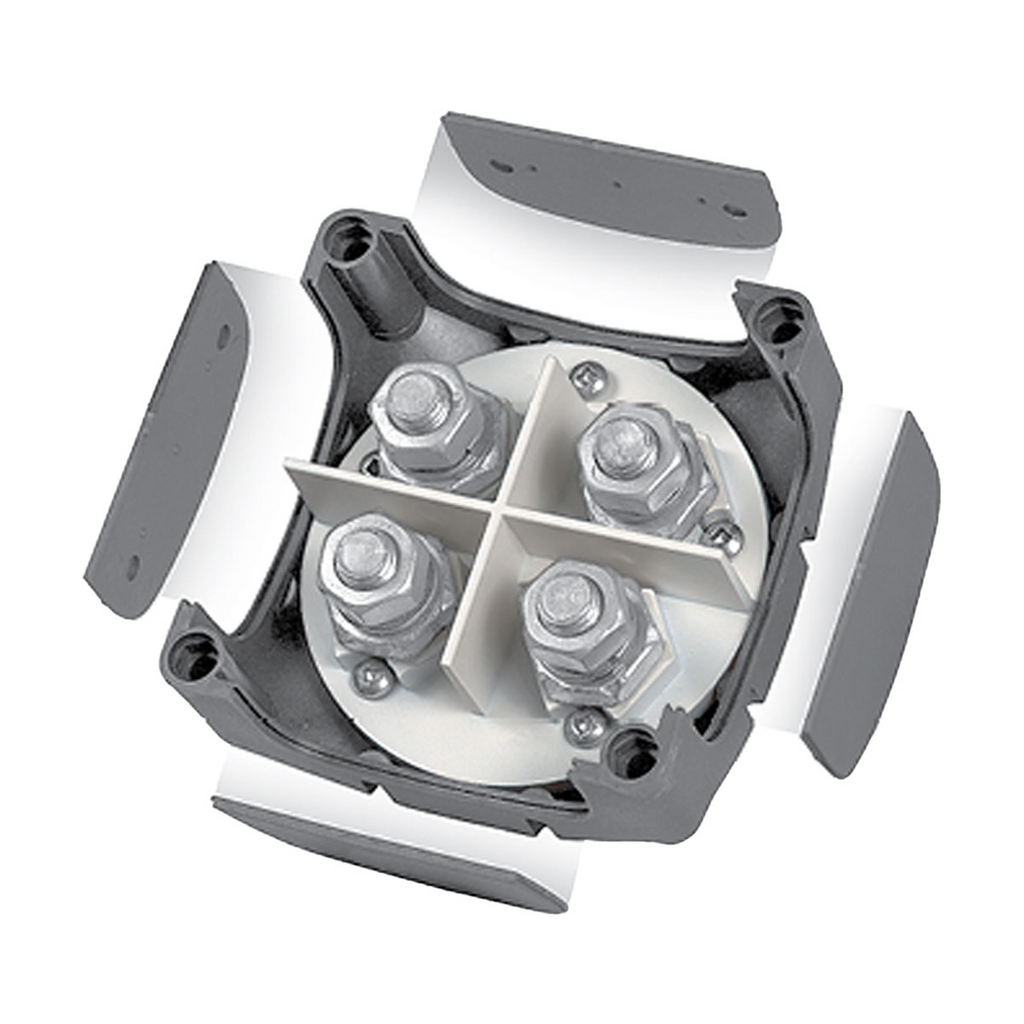

Designed to isolate both positive and negative circuits as required in some commercial vessel installations. It is not recommended for switching house and start battery systems at the same time for safety reasons. Removable rear cover insulates the rear terminals against short circuit and removable side plates provide access for heavy duty battery cables. Suitable for surface mounting or recessed mounting in a 85mm hole. Screw holes 5mm roundhead. Ignition protected.
Specifications
Continuous rating 400 amps DC
Intermittent rating 525 amps DC
Cranking rating 1500 amps DC for 10 seconds
Voltage rating 48 volts DC maximum
Terminal stud size 4 x 12mm
