Description

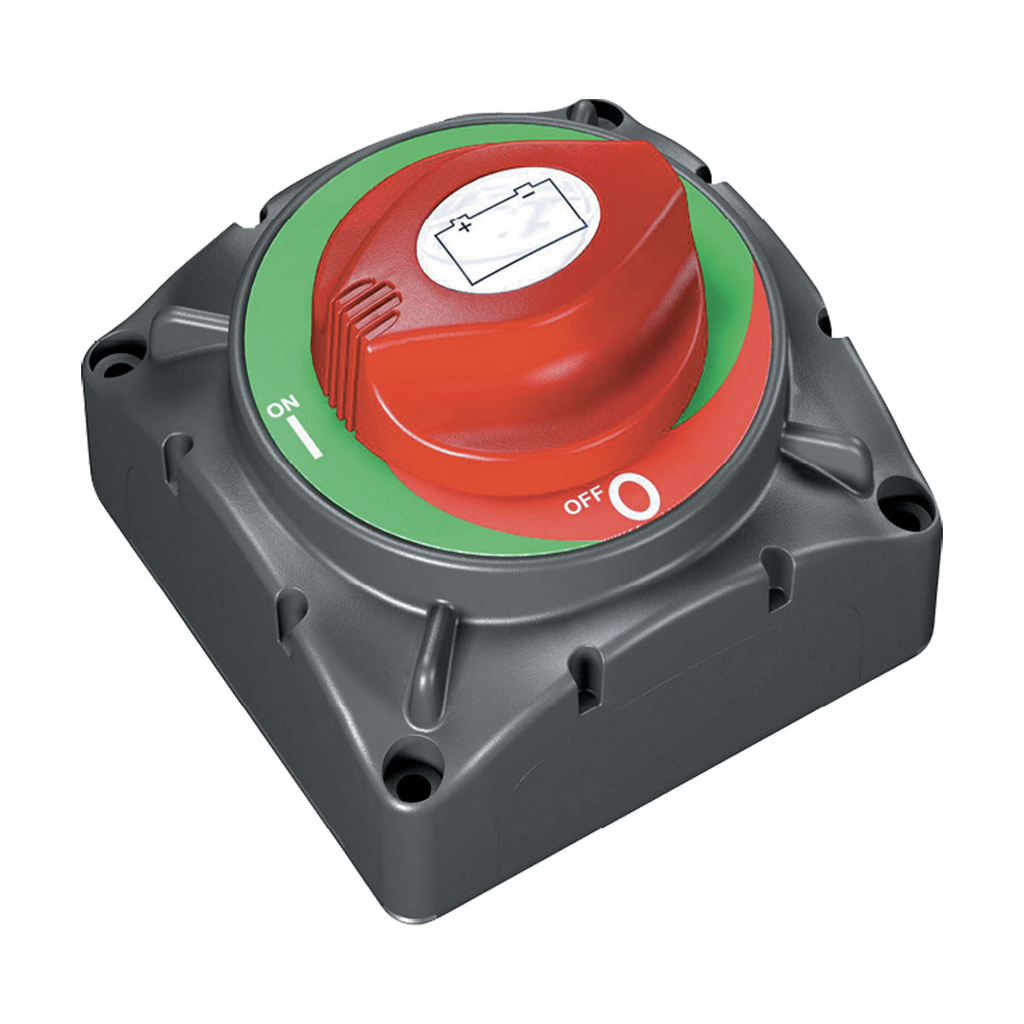

The 720 heavy duty Contour Master Switch is designed for larger vessels with higher amp loads. It offers 600 amps continuous and 2500 amps cranking capacity. The switch can be recess mounted in a 85mm hole or surface mounted. Screw holes 5mm roundhead. Interchangeable labelling system on the control knob allows a full range of applications. Switches come standard with the battery symbol label. Alternative label sets 113691 are available. Removable rear cover insulates the rear terminals against any short circuits and ensures the switch meets ABYC requirements. Non corrosive construction, self cleaning sliding contacts. Ignition protected.
Specifications
Continuous rating 600 amps DC
Intermittent rating 800 amps DC
Cranking rating 2500 amps DC for 10 seconds
Voltage rating 48 volts DC maximum
Terminal stud size 2 x 12mm
