Description

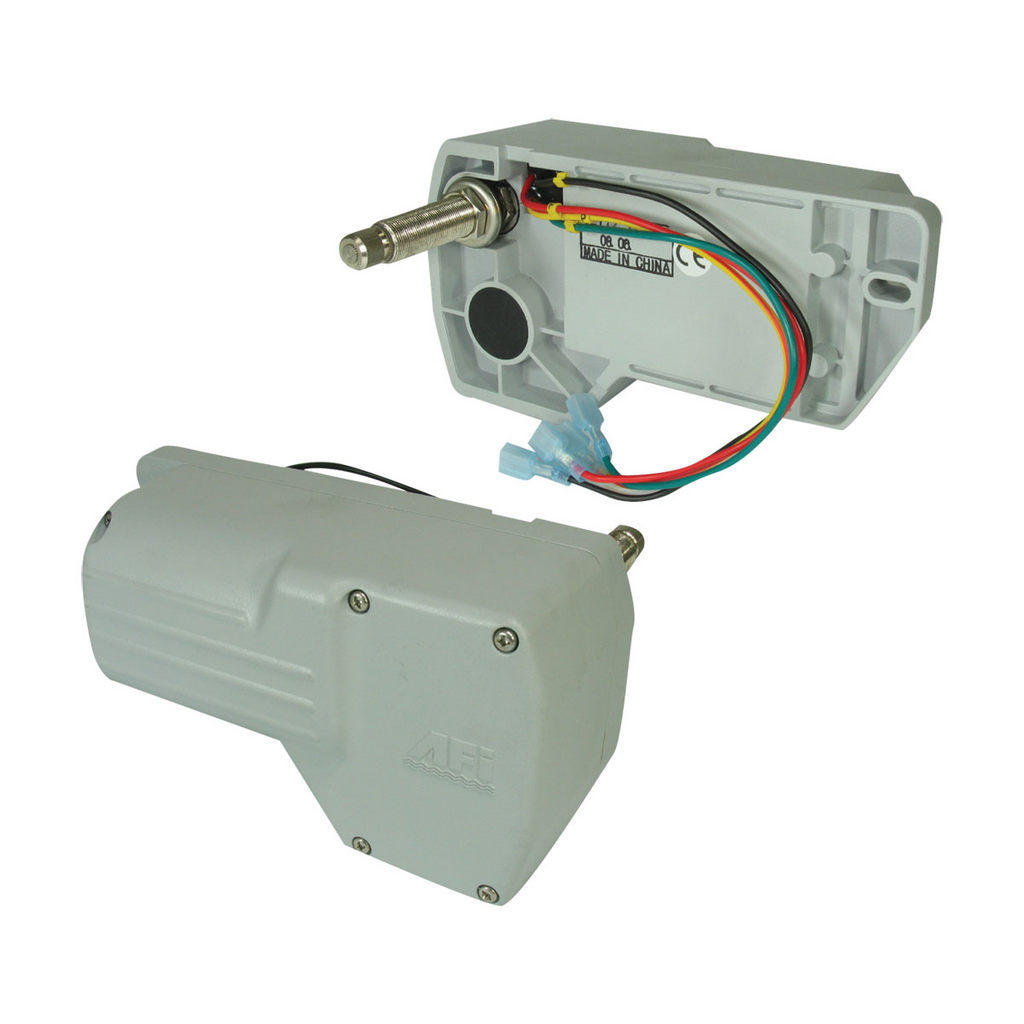

Fully sealed powder coated aluminium waterproof base and housing, powers up to 660mm sweeps.
Features
Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
M16 Brass shaft
Factory pre-set sweep angles of 110º, with easy adjustment to 45º, 60º or 80º
Two speed motor
Coast to park with adjustable right or left self parking
Sealed 150mm 16AWG wire leads, with RF shielded circuitry
Stall torque 160 kgf/cm; 15.7 Nm (139 in - lbs)
Stall current 9 - 10.5 amps at 12V
No load current 1 - 1.6 amps at 12V
3 year warranty
Volts 12
Motor Length 201 mm
Motor Depth76.8 mm
Motor Width 108 mm
Thread Shaft Length 50 mm
Overall Shaft Length 65 mm
