Description

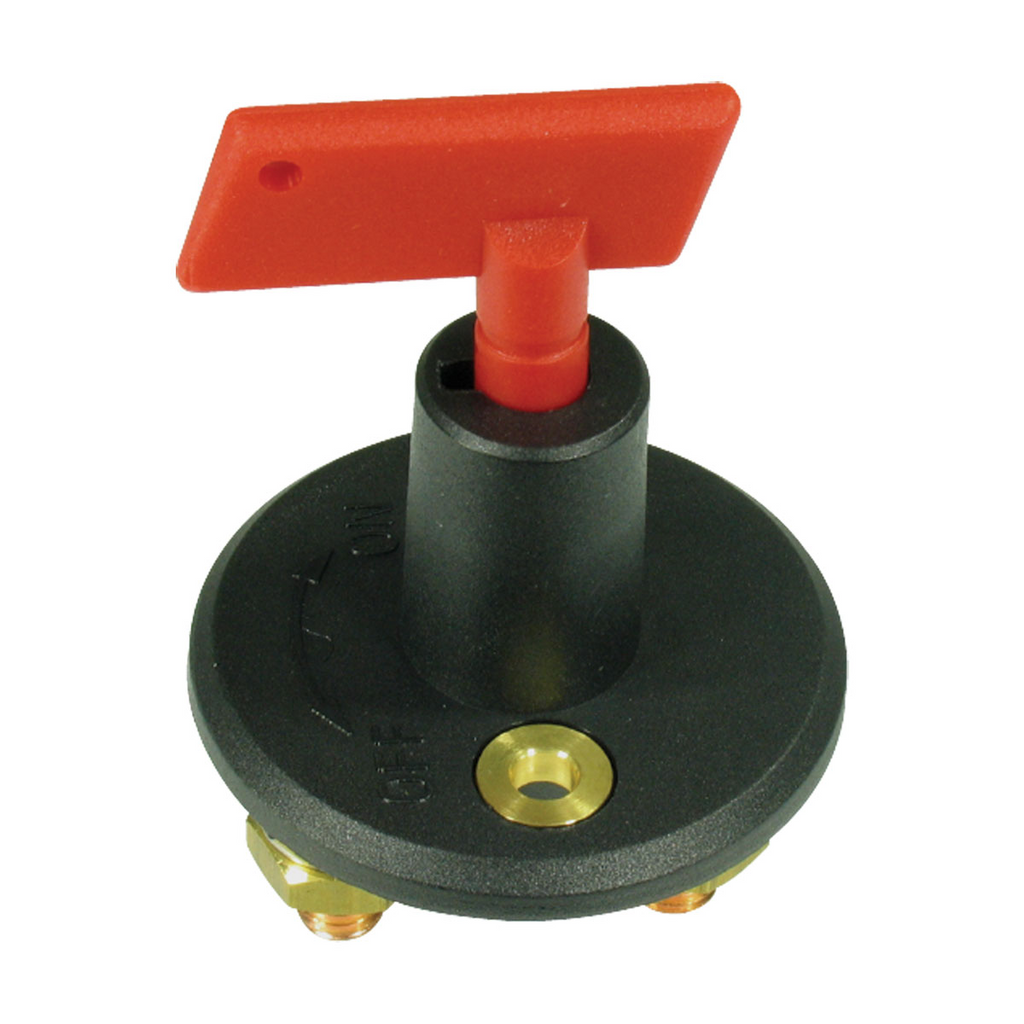

Simple key type, two position switch with insulated black plastic housing, red removable plastic key and all brass electrical contacts. Suitable for 12 or 24 volt. Unit may be surface mounted or partially recessed behind the panel with just the stem protruding. Engines must be shut down before turning to 'off' position. Rated maximum load, 500 amps for ten seconds. Overall length includes key.
BLA CodeBase Dia. mmOverall Length mmStem Length mmStem Dia. mmMount Screws mmTerminal Stud mm
BLA Code
Base Dia. mm
Overall Length mm
Stem Length mm
Stem Dia. mm
Mount Screws mm
Terminal Stud mm
1143086510233236 r/h10
Accessories
114309 Spare key only (without boot)
