Description

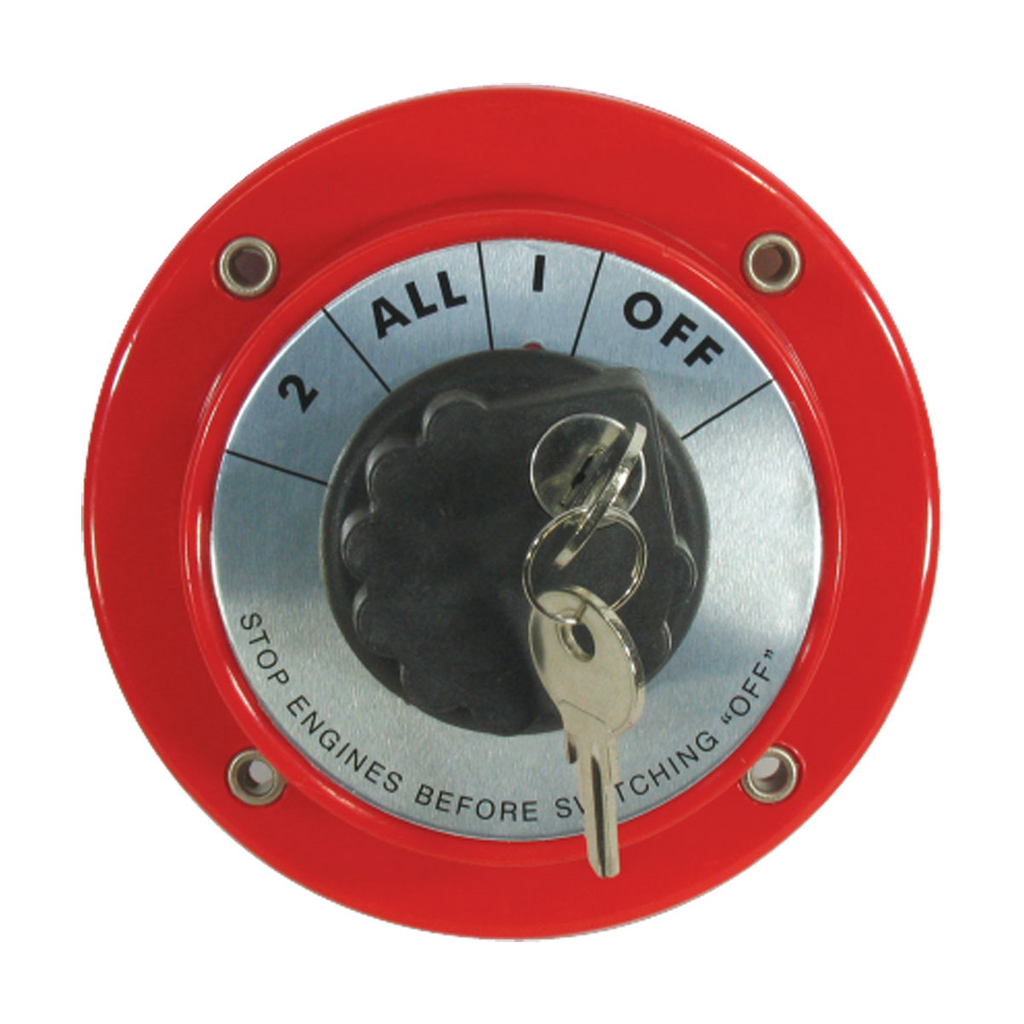

Battery selector switch with key lock providing added security to engine starting. Four position options enable isolation of one battery or battery bank from the other. Also provides the ability to link both batteries in parallel. The unit can be surface or partially recess mounted.
Specifications
Voltage 6-32V DC
Continuous Rating 250 amps DC
Intermittent Rating 360 amps DC
BLA Code114296
Base Dia.134 mm
Cut Out Dia.96 mm
Overall Depth 70 mm
Mount Screws 5mm
Terminal Stud 8mm
