Description

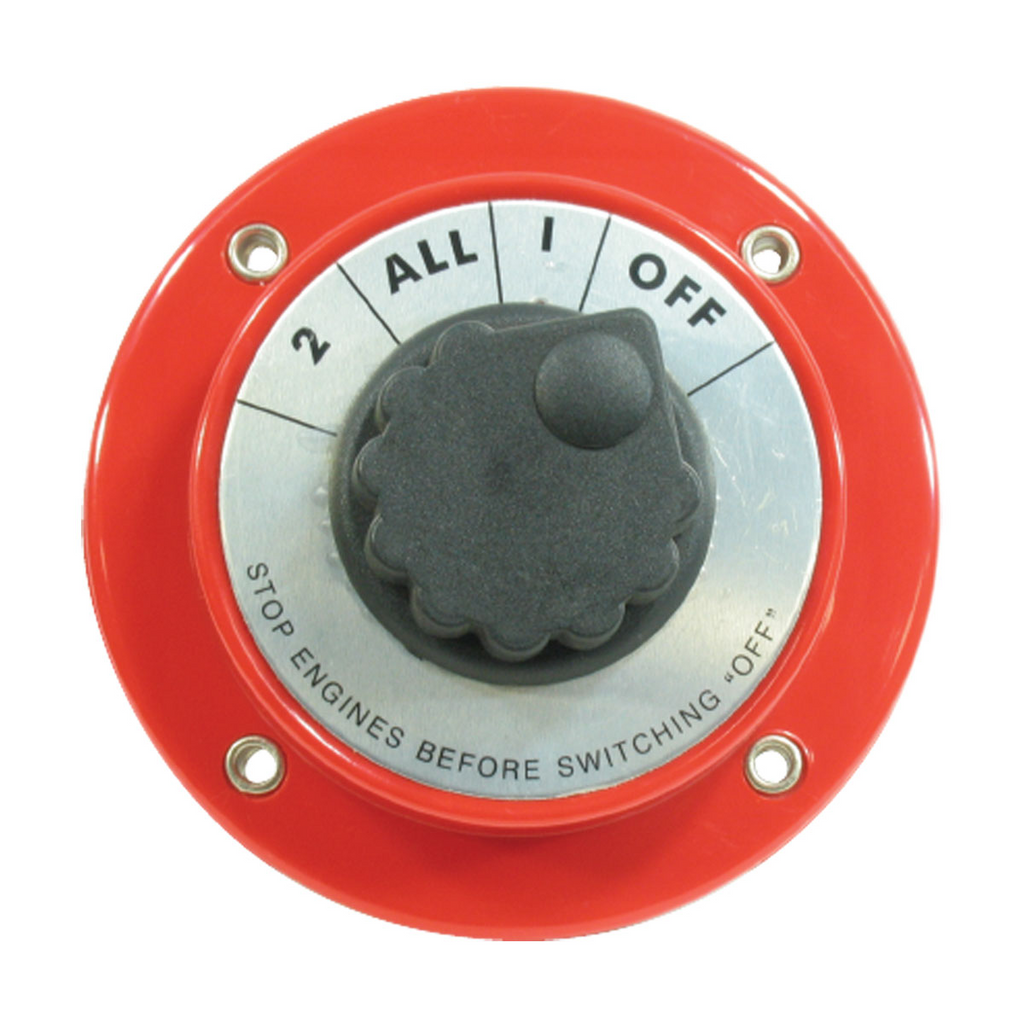

Battery selector switch with off/1/all/2 positions. Enables isolation of one battery or battery bank from the other. Also provides the ability to link both batteries in parallel. Suitable for surface or partial recessed
mounting options.
Specifications
Voltage 6-32V DC
Continuous Rating 250amps DC
Intermittent Rating 360amp DC
BLA 114294
Base Dia.134 mm
Cut Out Dia.96 mm
Overall Depth 70 mm
Mount Screws 5mm
Terminal Stud 8mm
