Description

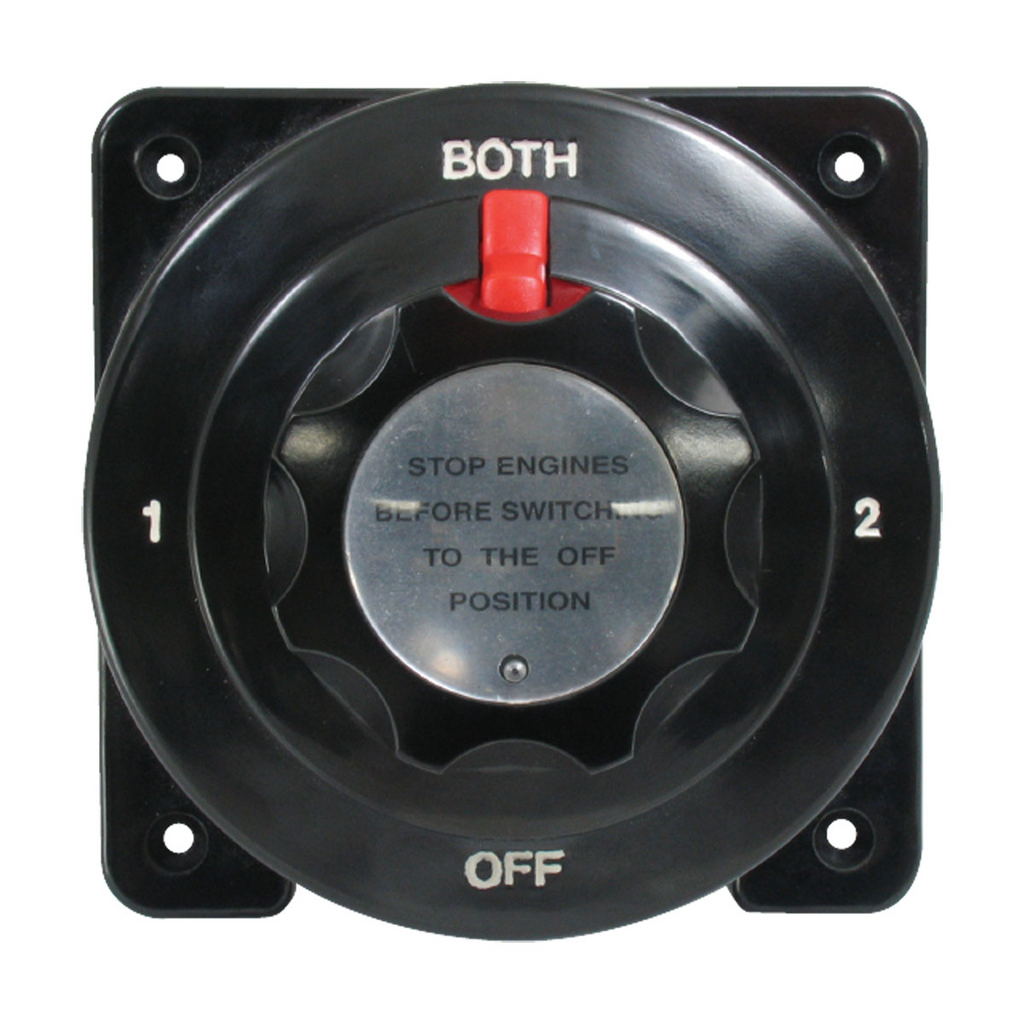

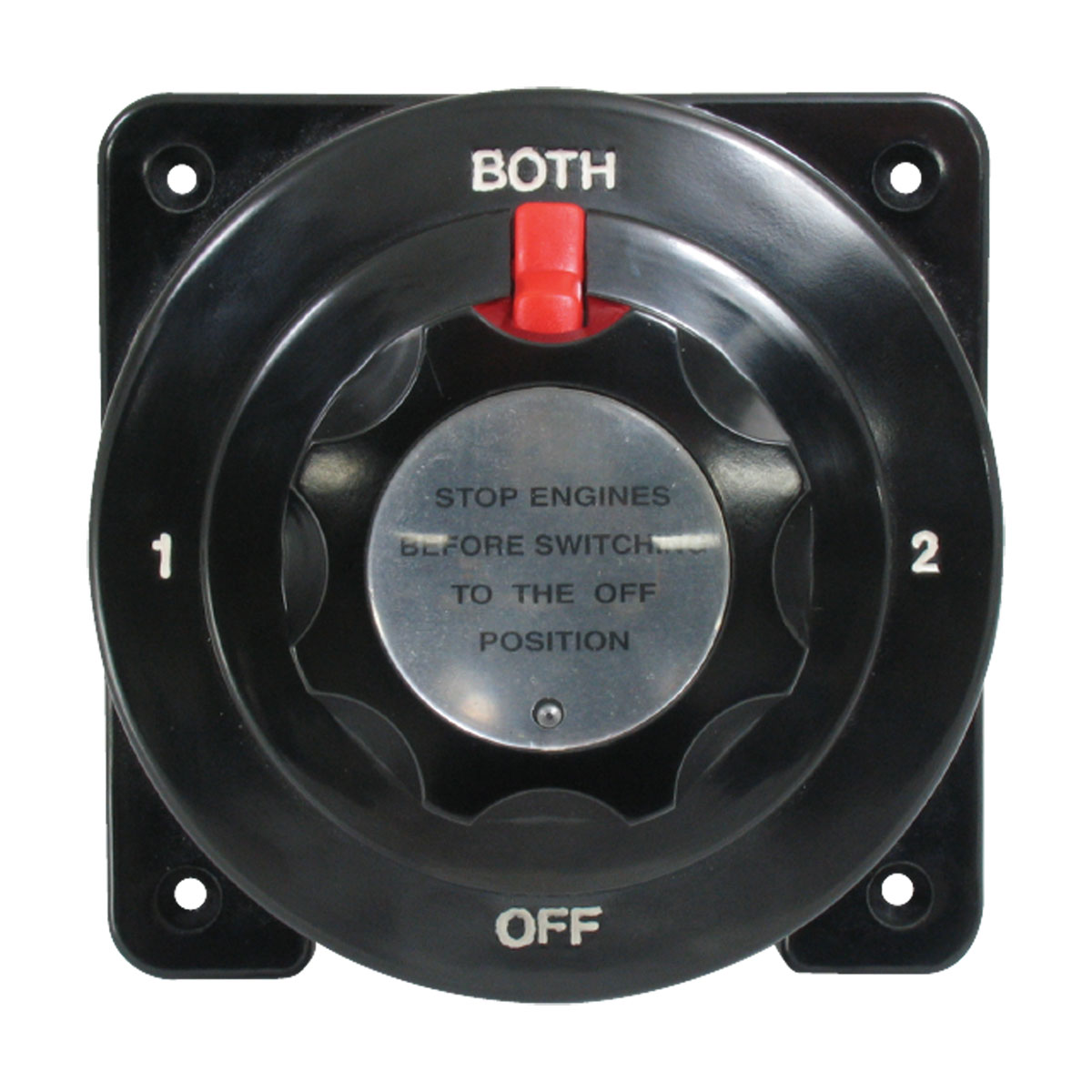

Battery selector switch with off/1/both/2 positions. Enables isolation of one battery or battery bank from the other, or link up both batteries in parallel for additional power. Engines must be shut down before turning to 'off' position. Rotary dial has a spring loaded keeper to positively lock the selected position. Designed to be surface mount with cable entry from below.
Specifications
Voltage 6-32V DC
Continuous Rating
235 amps
Intermittent Rating
300 amps
BLA CodeBase Size mmOverall Depth mmMount Screws mmTerminal Stud mm
BLA Code
Base Size mm
Overall Depth mm
Mount Screws mm
Terminal Stud mm
114304137 x 137725 c/s10
