Description

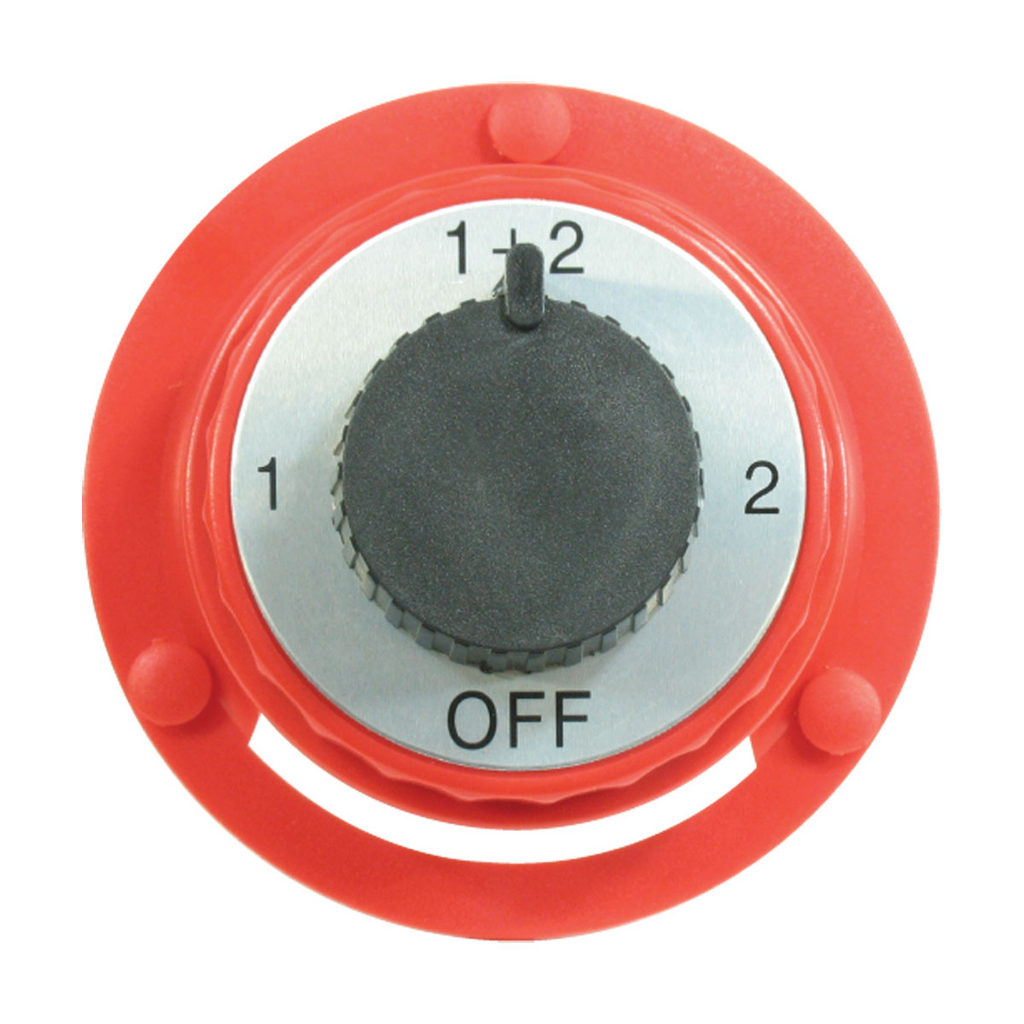

Four positions battery selector switch with 0/1/1+2/2 options. Enables isolation of one battery or battery bank from the other, or to link up both batteries in parallel for additional power. Alternator field disconnect allows switching to any position when engine is running without damaging alternator. Designed for surface mounting. Plastic caps cover the mounting screws.
Specifications
Voltage 6-32V DC
Continuous Rating
250 amps
Intermittent Rating
360 amps
BLA Code
Base Size 140mm
Overall Depth 73mm
Mount Screws 5mm
Terminal Stud 8mm
Alt. Field Stud 3mm
