Description

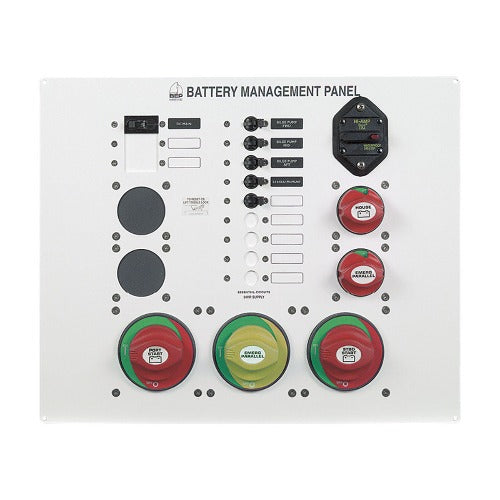

Preassembled module with white powder coated aluminium recessed face plate containing 113551 heavy duty Battery Master Switches to cater for higher start up current of larger diesels, two 113548 Mini Battery Master Switches, Bussmann heavy duty circuit breaker for anchor winch, five 24 hour essential power supply 'B' Series circuit breakers and a 100 amp 'C' Series circuit breaker for the DC main supply. Space is available to fit additional battery switches and circuit breakers as above. Supplied with a comprehensive circuit breaker label set.
BLA CodeOverall Size mmBase mmHeight mmMount Holes mm
BLA Code 113679
Overall Size 463 x 380 mm
Base 55 mm
Height 35 mm
Mount Holes 4 mm r/h
