Description

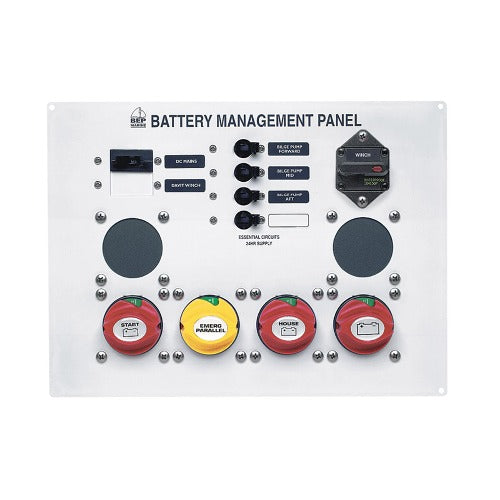

Preassembled module with white powder coated aluminium recessed face plate containing four 113548 Mini Battery Master Switches, Bussmann heavy duty circuit breaker for anchor winch, four 24 hour essential power supply 'B' Series circuit breakers and a 100 amp 'C' Series circuit breaker for the DC main supply. Start and house batteries can be isolated independently with the ability to emergency parallel both batteries. A spare battery master switch is supplied for radio, genset, anchor winch etc. Space is available to fit an additional two battery switches and a second 'C' Series circuit breaker for other high load applications such as davit winches, toilet treatment systems, DVSR etc. Supplied with a comprehensive circuit breaker label set.
BLA CodeOverall Size mmBase mmHeight mmMount Holes mm
BLA Code 113677
Overall Size351 x 260 mm
Base 55 mm
Height 35 mm
Mount Holes 4 mm r/h
