Description

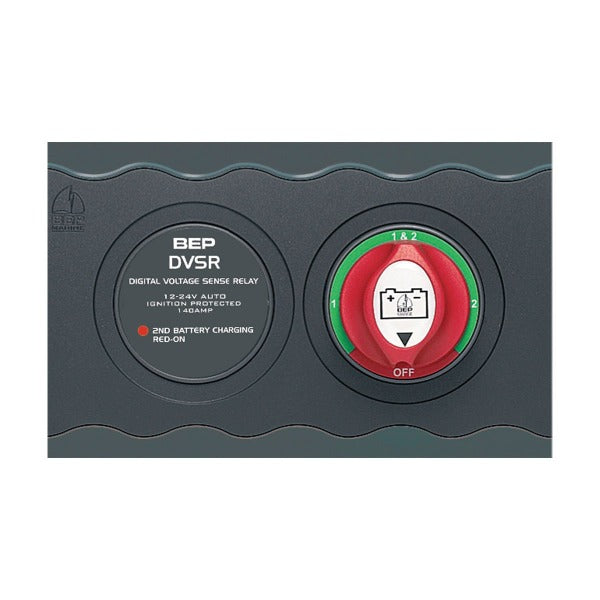

Pre-wired, flush mount module that combines the 113553 battery selector switch and a 140 amp dual sensing Voltage Sensitive Relay in an aesthetically pleasing, modular housing. Operation is identical to 113654 on page 158. Panel fastening is concealed by interchangeable clip-on strips (light grey is supplied as standard) and clip-on cover at rear ensures ABYC compliance of the installation. Supplied with one interlink joiner enabling simplified system expansion.
BLA CodeWidth mmHeight mmIntrusion mmCut Out mm
BLA Code
Width 166mm
Height 106mm
Intrusion 55mm
Cut Out 146 x 86mm
Sku113010
