Description

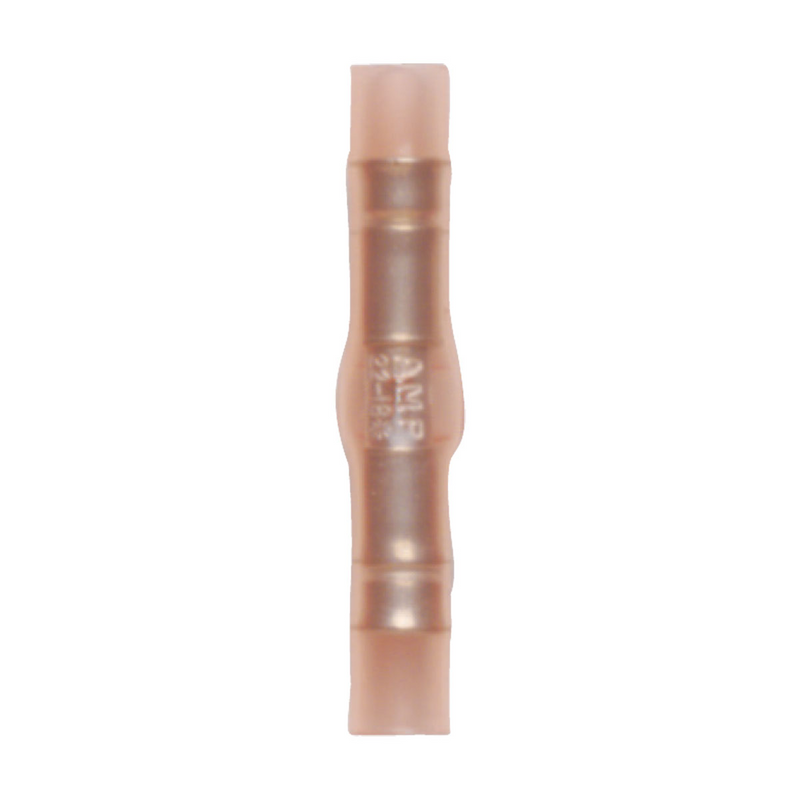

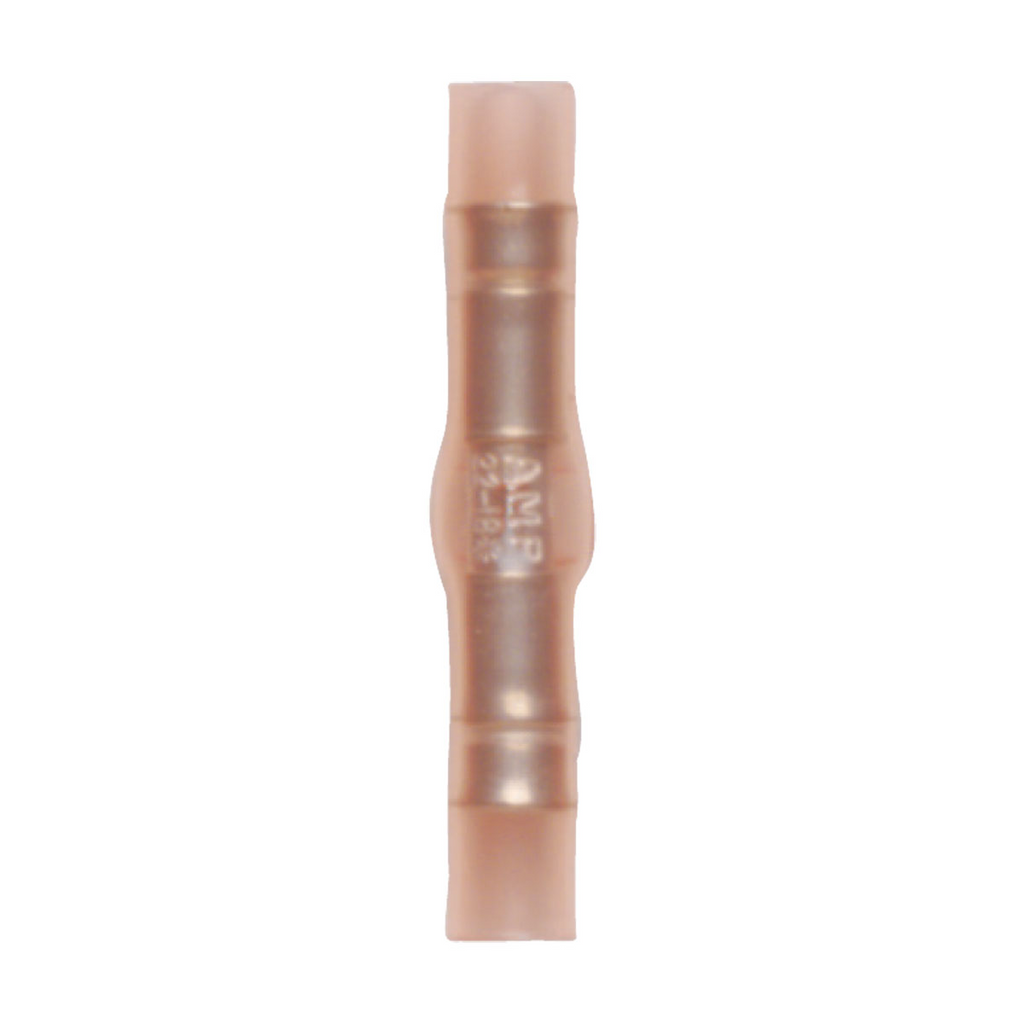

Unique range of sealed, waterproof crimp terminals are the perfect solution for single wire terminations in corrosive or marine environments.
The tin plated copper terminals feature a tough, heat shrinkable, adhesive lined, colour coded insulation. After completion of the standard crimping process, the terminal insulation is then heated with a heat gun or small gas torch.
Within seconds, the terminal insulation then shrinks and the internal adhesive sealant melts and flows to provide a permanent seal and bond to the wire insulation.
| BLA CODE | COLOUR | WIRE SIZE MM2 | LENGTH MM | PACK QTY |
|---|
| 115294 | Red | 0.5-1.5 | 36 | 25 |
| 115296 | Blue | 1.5-2.5 | 36 | 25 |
| 115298 | Yellow | 2.5-6 | 42 | 25 |
