Description

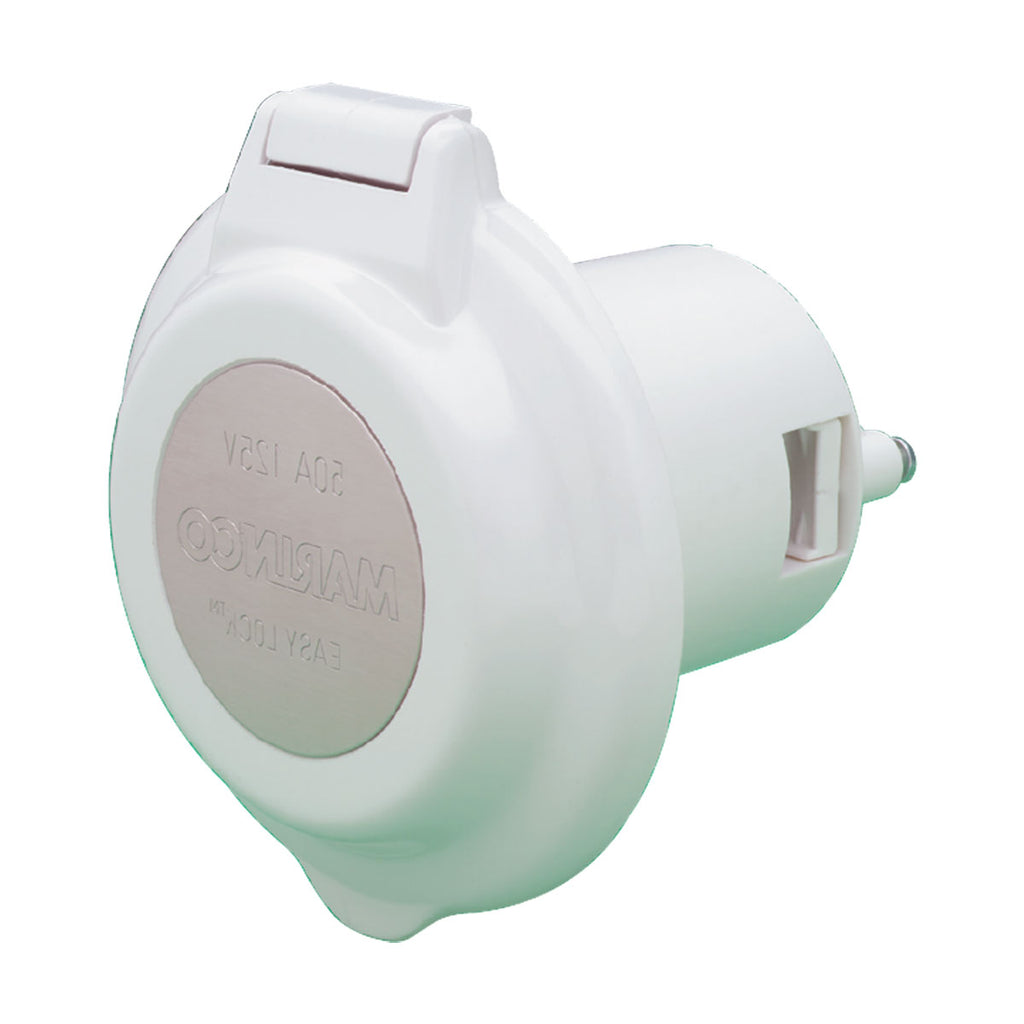

Marine grade U.V. stabilised glass filled polyester construction with tinned brass electrical connectors and easy lock quarter turn system. A special cam feature on the hinged cap allows it to stay open during connection.
A soft touch unlocks the watertight cap for closing. Cap is trimmed with a stainless steel centre trim piece. Rear safety enclosure provides eight positions for cable entry.
| BLA CODE | RATED AMPS | FACE SIZE MM | PROTRUSION MM | INTRUSION MM | CUT OUT DIA. MM |
|---|
| 114700 | 16 | 99 x 109 | 21 | 74 | 58 |
| 114750 | 32 | 99 x 109 | 21 | 102 | 61 |
