Description

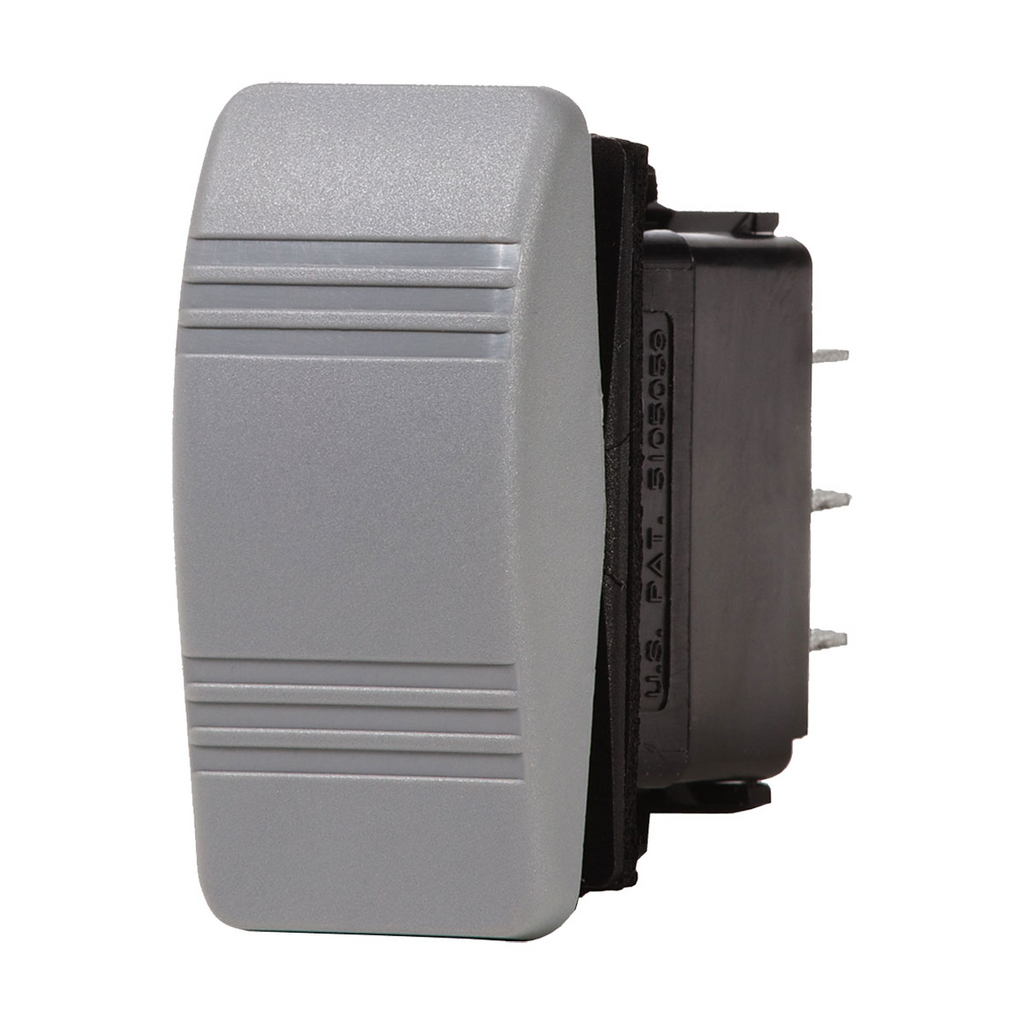

Modern style contura rockers switch designed to blend in with the mounting panel to be less obtrusive than toggle type switches. Rated to 20Amps at 12V/ 15Amps at 24V and are vibration, shock, moisture and salt resistant.
| BLA CODE | SWITCH | THROW | SWITCH FACE SIZE MM | CUT OUT MM | SWITCH COLOUR | LED'S |
|---|
| BS-8222 | (On)- Off - (On) | DPDT | 48 x 24 | 37 x 21 | Grey | - |
| BS-8230 | Off- On | SPST | 48 x 24 | 37 x 21 | Grey | 1 |
| BS-8231 | Off - (On) | SPST | 48 x 24 | 37 x 21 | Grey | - |
| BS-8232 | On- Off- On | SPDT | 48 x 24 | 37 x 21 | Grey | 2 |
| BS-8233 | (On)- Off- On | SPDT | 48 x 24 | 37 x 21 | Grey | 1 |
| BS-8282 | Off- On | SPST | 48 x 24 | 37 x 21 | Black | 1 |
| BS-8286 | On- Off- On | DPDT | 48 x 24 | 37 x 21 | Black | 2 |
