Description

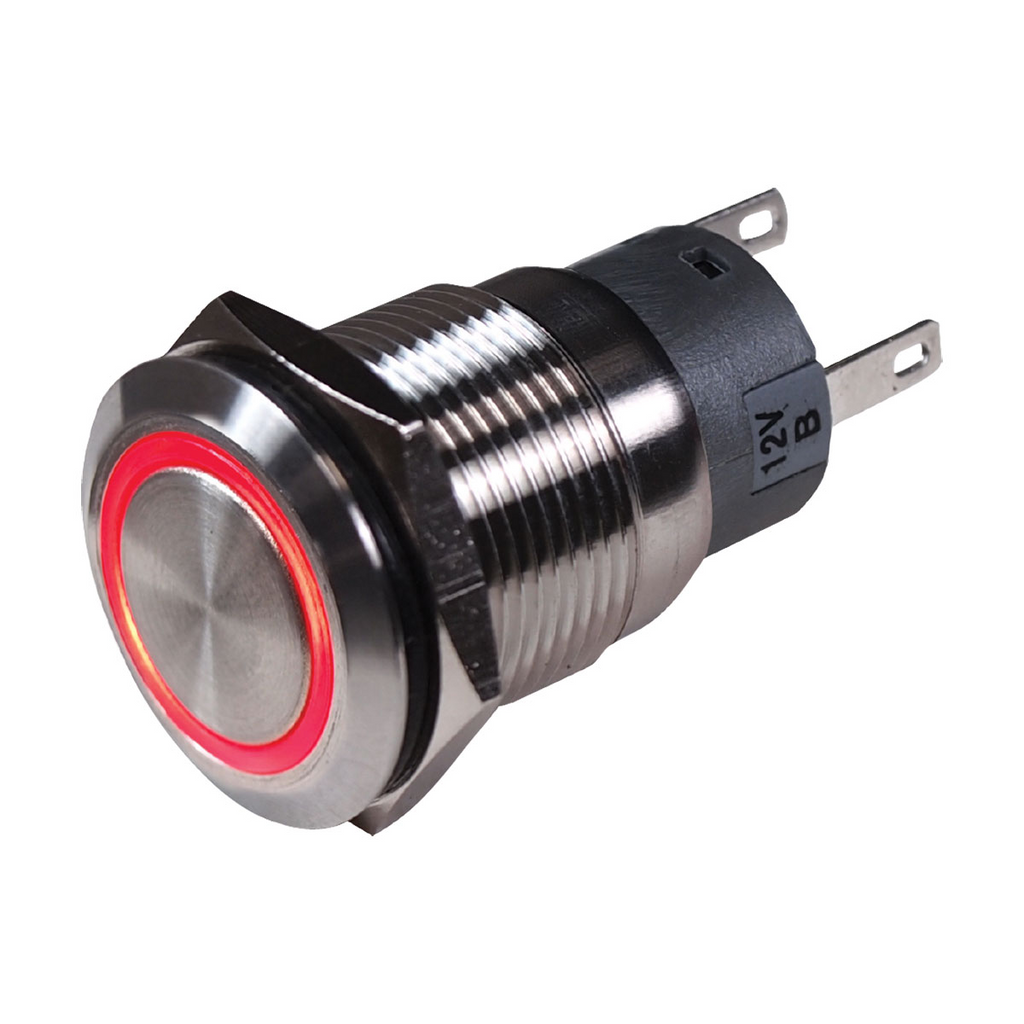

Stainless steel push button switches and buzzers suitable for a wide variety of uses and applications. Manufactured using 304 grade stainless steel, these IP67 rated panel mount switches when installed are ideal for light switching or being used in custom switch and dash panels. The switches have the ability to be wired to allow the light rings, available in either red or blue surrounds, to show power to a system or may be utilised as convenient switch back lighting. Also included in the range are matching stainless steel warning buzzers with a loud 80dB tone and LED light rings.
Features
Momentary and latched actuation options available
Blue and red circuit status indication LED options
304 grade stainless steel components, silver alloy contacts
Maximum switch current rating to 5 amps
Small 19mm mounting hole allowing for 10mm panel thickness
Waterproof to IP67 for switches only
IP50 rating for buzzer only
Buzzer sound intensity to 80dB
| BLA CODE | POSITION | ILLUMINATION | VOLTS |
|---|
| 114210 | On/off | Red | 12 |
| 114212 | Momentary/off | Red | 12 |
| 114216 | On/off | Blue | 12 |
| 114218 | Momentary/off | Blue | 12 |
| 114222 | On/off | Red | 24 |
| 114224 | Momentary/off | Red | 24 |
| 114228 | On/off | Blue | 24 |
| 114230 | Momentary/off | Blue | 24 |
| 114240 | Buzzer with warning | Red | 12 |
| 114244 | Buzzer with warning | Red | 24 |
