Description
Economical switch panels. Bakelite face panel pre-wired with common supply to fuse. Screw top fuse holders and chromed brass toggle switches. 12/24 volt. Supplied with 15 amp fuses. Available in three and six gang configurations. Nameplates included.
| BLA CODE | GANG | HEIGHT MM | WIDTH MM | CUT OUT MM | INTRUSION MM | MOUNT SCREWS MM |
|---|
| 114000 | 3 | 93 | 115 | 70 x 85 | 35 | 4 c/s |

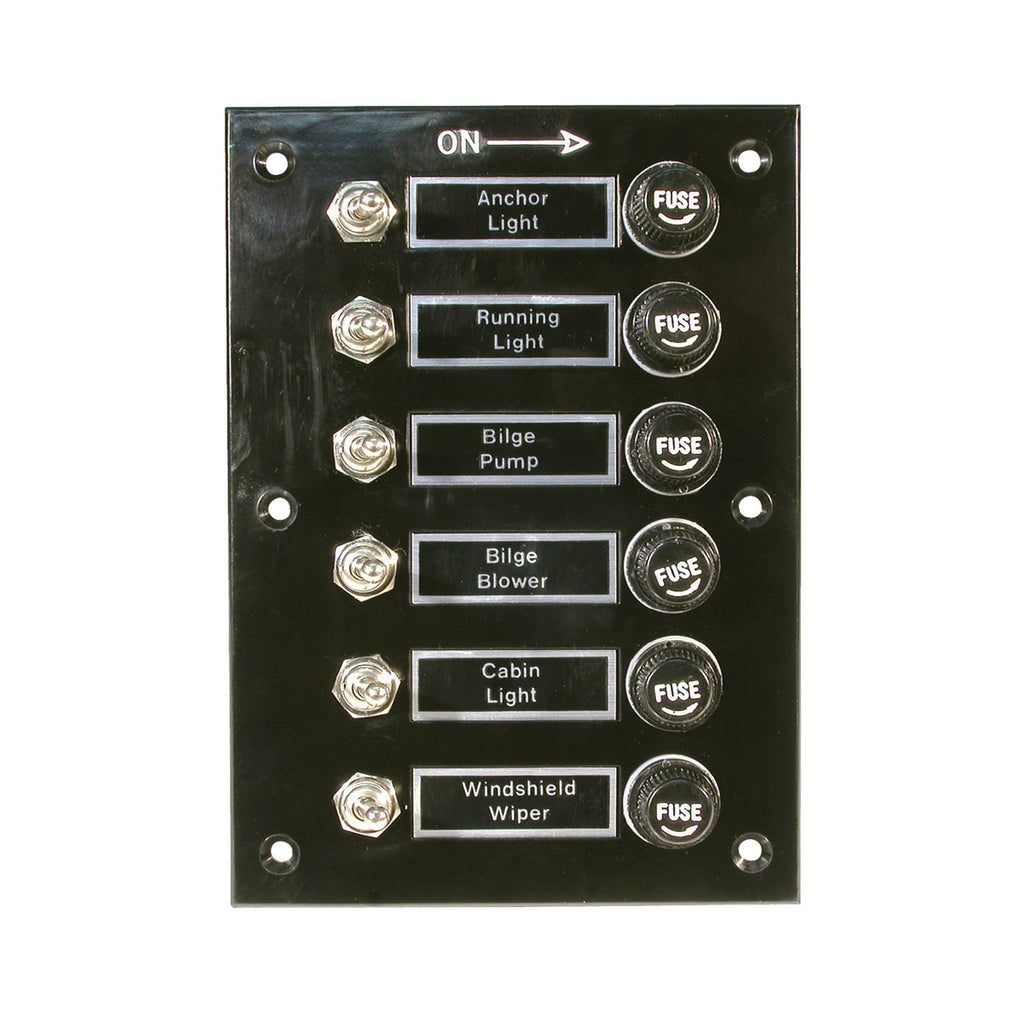

| 114002 | 6 | 165 | 115 | 145 x 85 | 35 | 4 c/s |
