Description

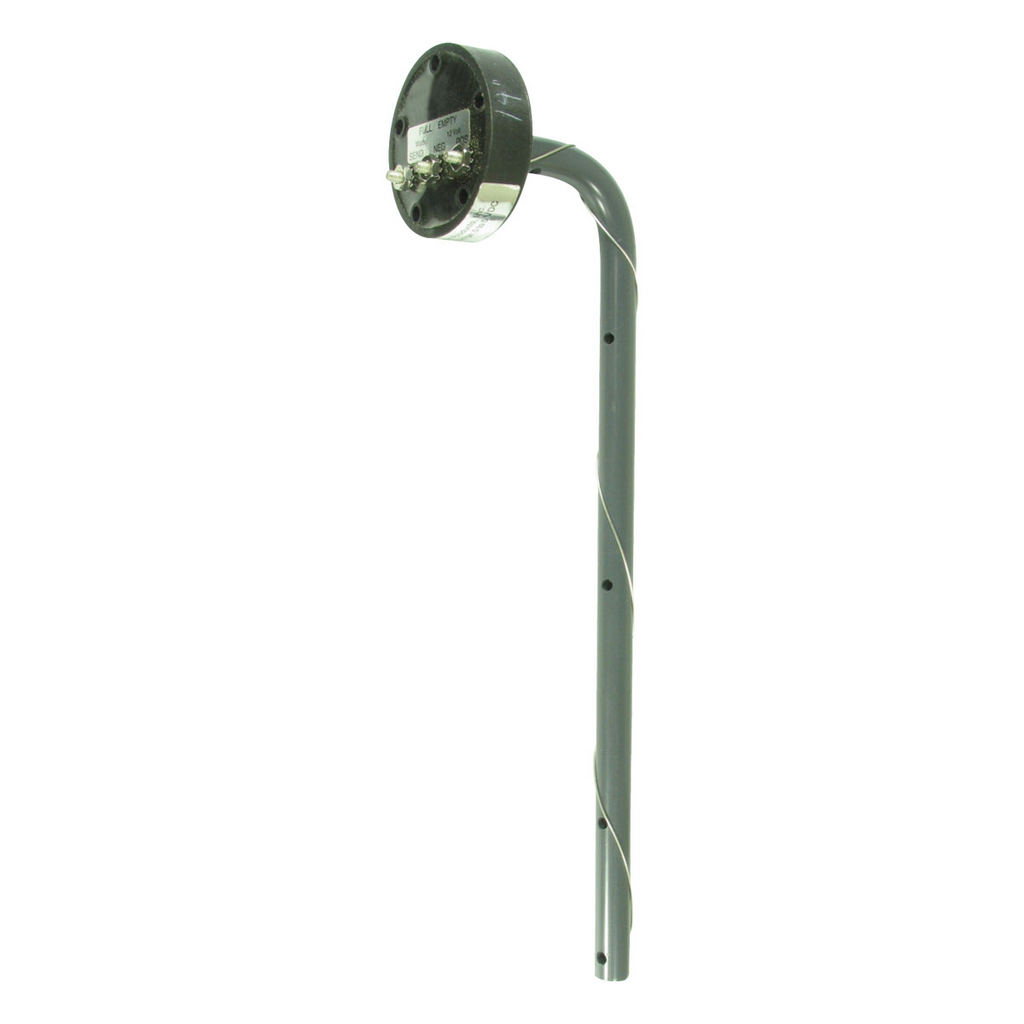

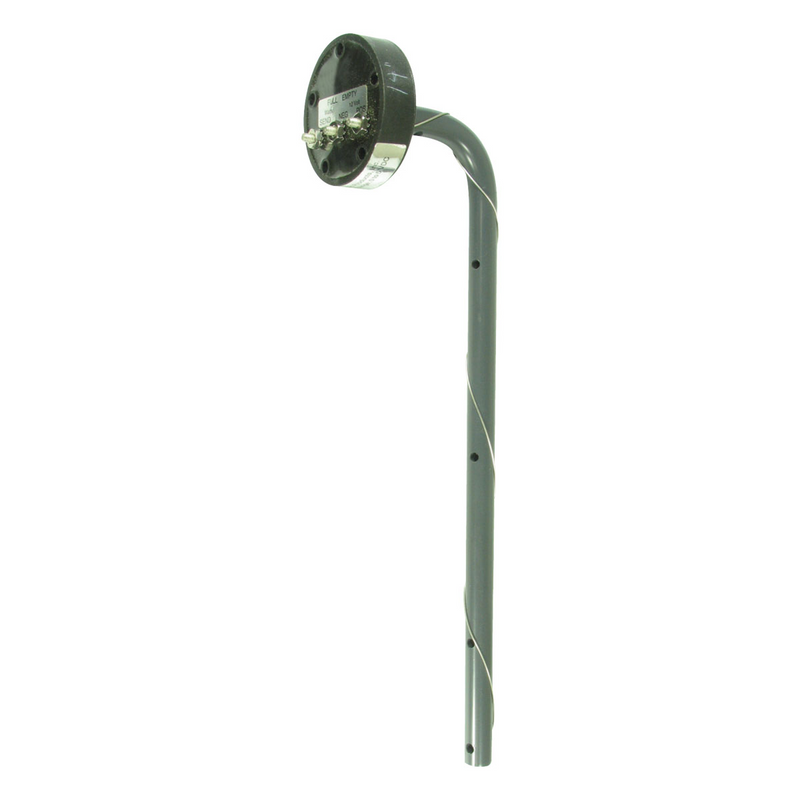

Available in side mount configuration to suit either fuel or water tanks. These easy to install probe senders feature no moving parts and are length adjustable. Senders are 0-5 volt output and are compatible with 113386 meter. 10-180 ohms output senders are available.
| BLA CODE | FLUID TYPE | MOUNT TYPE | TANK DEPTH MM | OUTPUT |
|---|
| 113371 | Fuel | Top | 50-910 | 0-5V |
| 113374 | Fuel | Side | 150-830 | 0-5V |
| 113377 | Water | Top | 50-910 | 0-5V |
| 113380 | Water | Side | 150-830 | 0-5V |
| 113381 | Fuel | Top | 50-910 | 10-180 ohms |
| 113384 | Water | Side | 150-830 | 10-180 ohms |
| 113387 | Fuel | Side | 150-830 | 10-180 ohms |
