Description

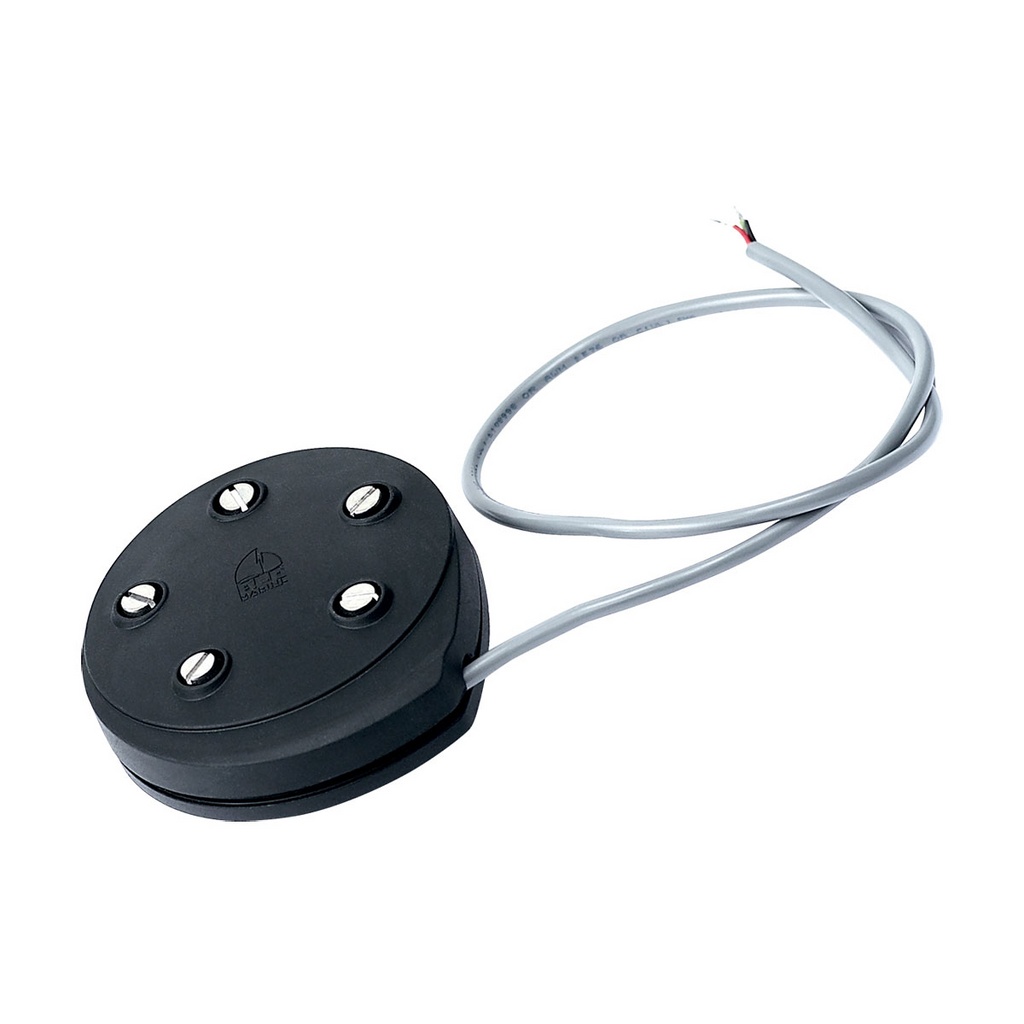

The BEP TS1 is an ultrasonic tank sender unit that has no moving parts and can be used in fuel tanks (petrol or diesel), freshwater, grey water or black water tanks. The TS1 can be used on any shape tank with a minimum depth of 200mm and a maximum depth of 2m. The unit operates on the same principle as a depth sounder and can be configured to be used in conjunction with BEP, Veethree, Faria, VDO and many other analogue gauges from most popular instrument manufacturers (not to be used with electronic gauges). It is suitable for top mount installations only. The low profile sender unit can be fitted in metal or plastic tanks, and is resistant to petrol, diesel, water and toilet chemicals. It has a 10-32V operating range and an operating temperature range of 4-65°C.
The TS1 sender unit is available in 2 configurations;
1. 113060 – TS1 sender unit non programmed. Suitable for OEM’s wishing to program their own units (113362 required).

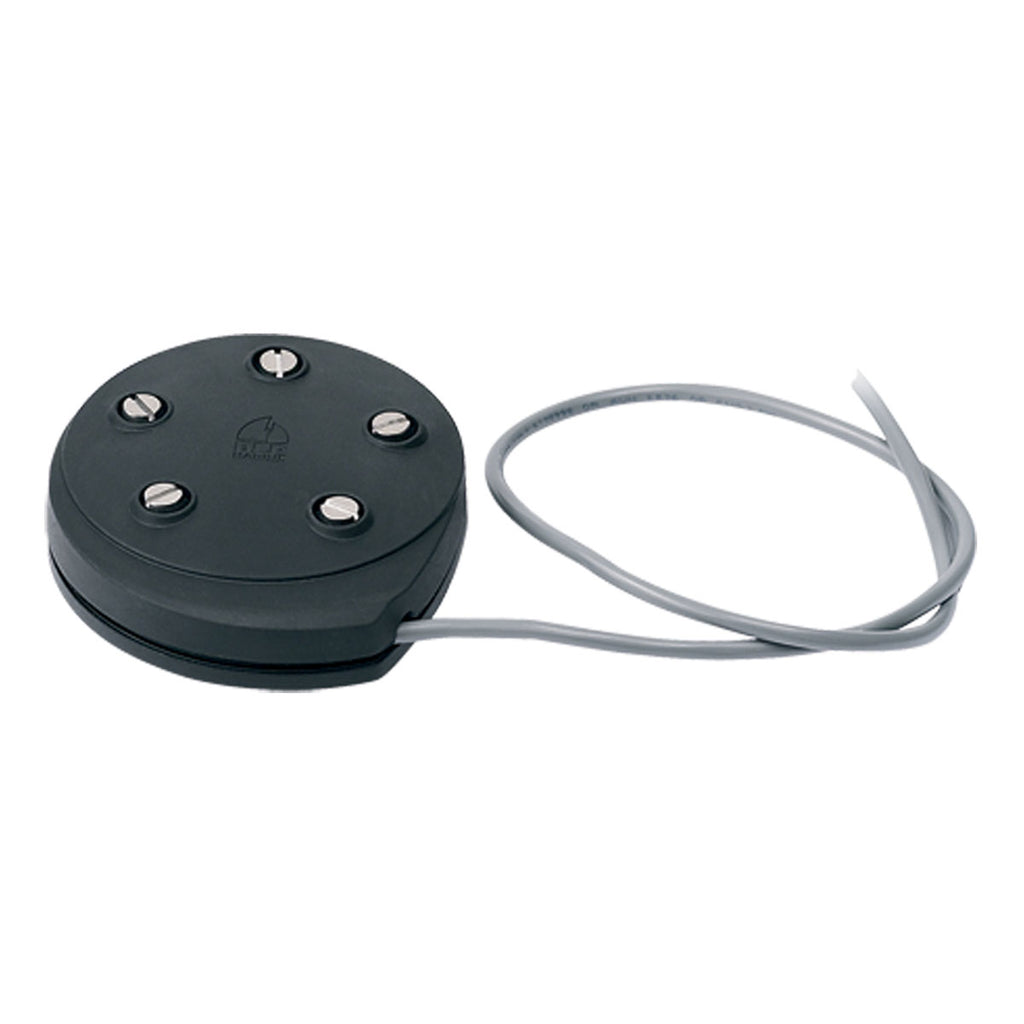

2. 113361 – For retail sales, the TS1 is available as a fully programmed unit. Information relating to tank shape, size, fluid type and gauge type must be forwarded to BLA on the corresponding paper work available from the bla.com.au web site or from your BLA Territory Manager.
To complement the TS1 sender, Marinco® BEP produce the DCSM (113386 refer page 206), enabling the user to view tank level information for multiple tanks in numeric and graphic forms. Suitable for fuel, freshwater, grey water and black water.
Features
• Handles common outputs – 240-33, 10-180, Vetus 10-300 and 0-5V tanks from Marinco® BEP, SeaStar Solutions®, Faria, VDO and many other popular instrument brands. (When connecting to non-adjustable gauges the TS1 must be pre-calibrated)
• Can be set for tank Dimensions via computer using Marinco® BEP’s proprietary TS1 software, avoiding experimental tank filling on site
• Connects directly to the DC systems monitors when configured to a 0-5V output
• Is set for 0-2000mm depth off the shelf (not suitable for tank depths less than 200mm)
• 2 Year warranty
• Operating voltage 10-32V
• Current draw 25 mA with 5V gauge output
• Measurement method Acoustic sonic measurement
• Tank depth 0–6.5 ft (2000 mm)
• Accuracy Distance 0–6.5 ft (2000mm) at 2mm accuracy
• Mounting SAE 5 stud mounting pattern with gasket, seal and screws (top mount only).
• Environmental temperature 39.2–149°F (4–65°C)
• Chemical resistance Petrol, diesel, water, toilet chemicals
• Tank type style Metal and plastic with non linear capacity
• Works with petrol, diesel, freshwater, grey water and black water
Accessories
113362 TS1-PK programming kit
N.B. The TS1 signal is not a true resistive signal and cannot be used with an electronic engine monitoring system.
The TS1 is ideally suited to analogue instruments that have a resistive range of 10-180ohm, 240-33ohm or 10-300ohm.
