Description

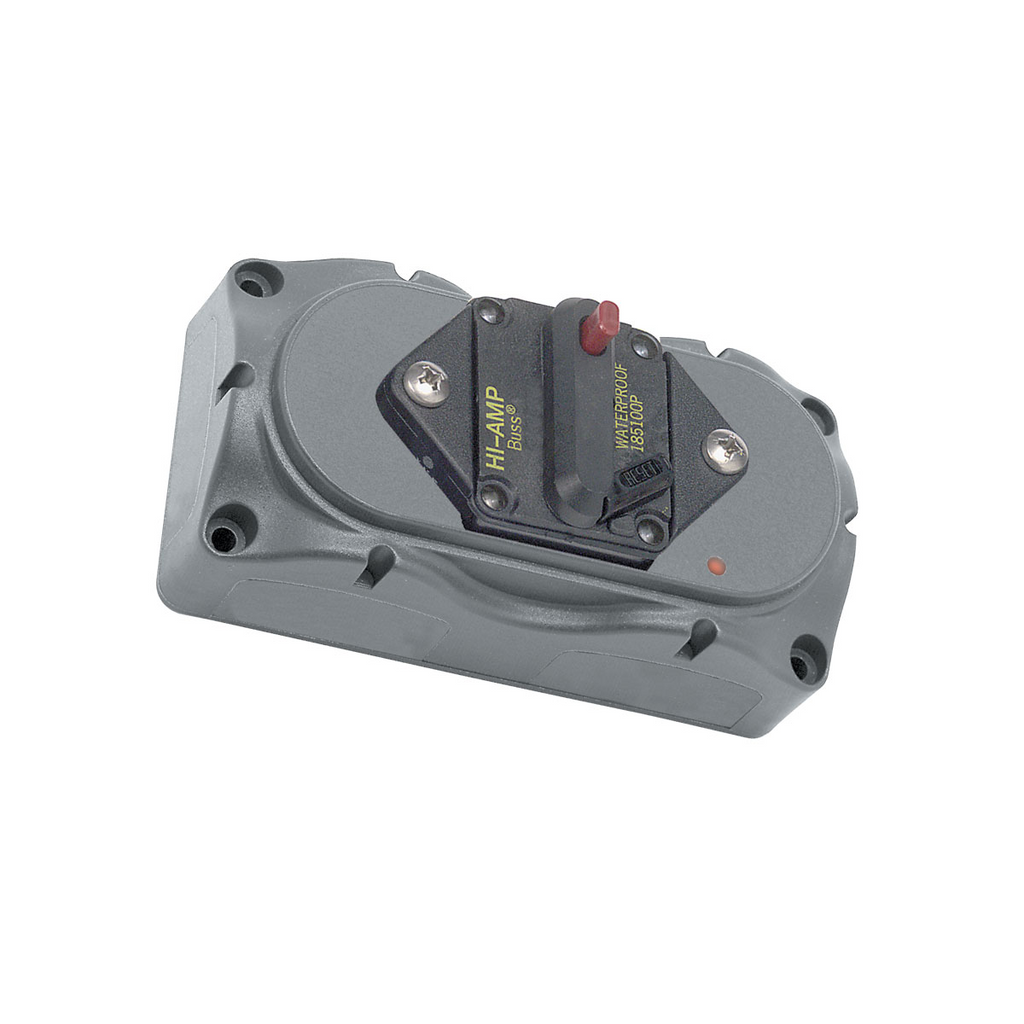

Allows switchable protection for heavy duty circuits like anchor windlass or davit winches. Utilises Bussmann® heavy duty thermal circuit breakers.
Designed to match all other Contour power distribution products with modular sizing and lock mouldings to facilitate easy grouping. LED to indicate circuit on. Label sheet 113697 or 113696 ordered separately. Available in sizes from 80-150amps.
| BLA CODE | AMPS | BASE MM | HEIGHT MM | MOUNT SCREWS MM |
|---|
| 113634 | 80 | 138 x 69 | 75 | 5 r/h |
| 113635 | 100 | 138 x 69 | 75 | 5 r/h |
| 113636 | 135 | 138 x 69 | 75 | 5 r/h |
| 113641 | 150 | 138 x 69 | 75 | 5 r/h |
