Description
The Contour Distribution Buss allows multiple terminations of heavy duty negative or positive connections. Removable side plates allow for connections from all sides.
Designed to match all other Contour power distribution products with modular sizing and lock mouldings to allow easy grouping. Meets ABYC standards for exposed terminals.

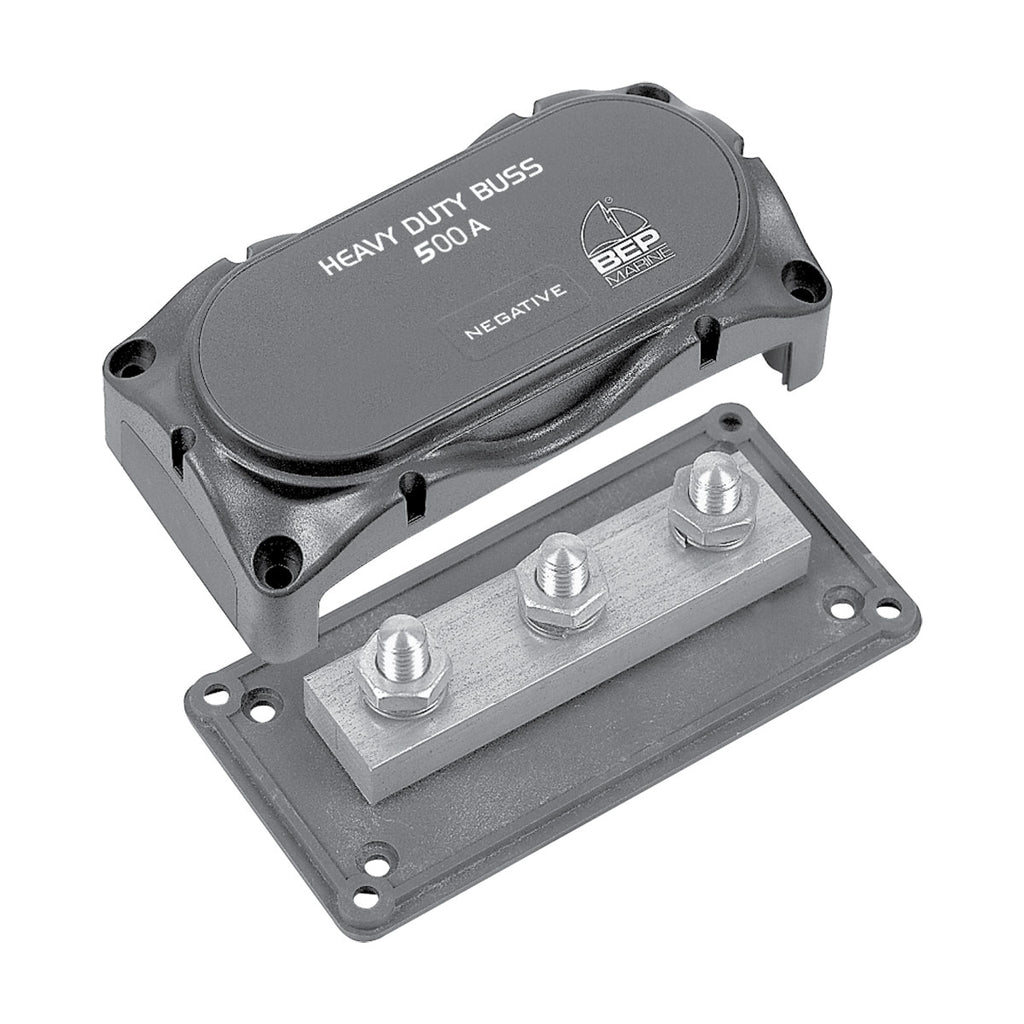

The 113567 is commonly used on heavy duty starter circuits. The taller cover provides for more bulky cables and lugs.
| BLA CODE | AMP | STUD DIA. MM | BASE MM | HEIGHT MM | MOUNT SCREWS MM |
|---|

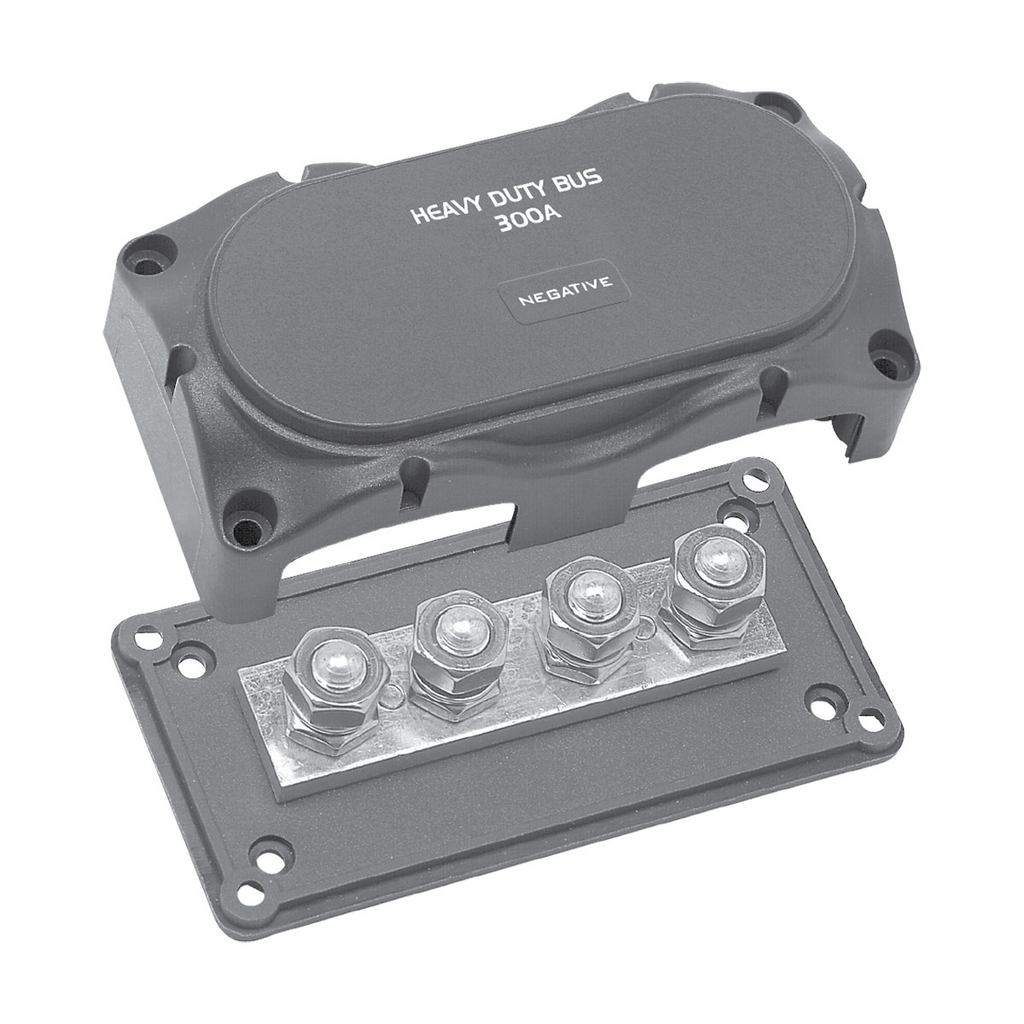

| 113566 | 300 | 10 x 4 | 138 x 69 | 50 | 5 r/h |
| 113567 | 500 | 10 x 3 | 138 x 69 | 75 | 5 r/h |
