Description

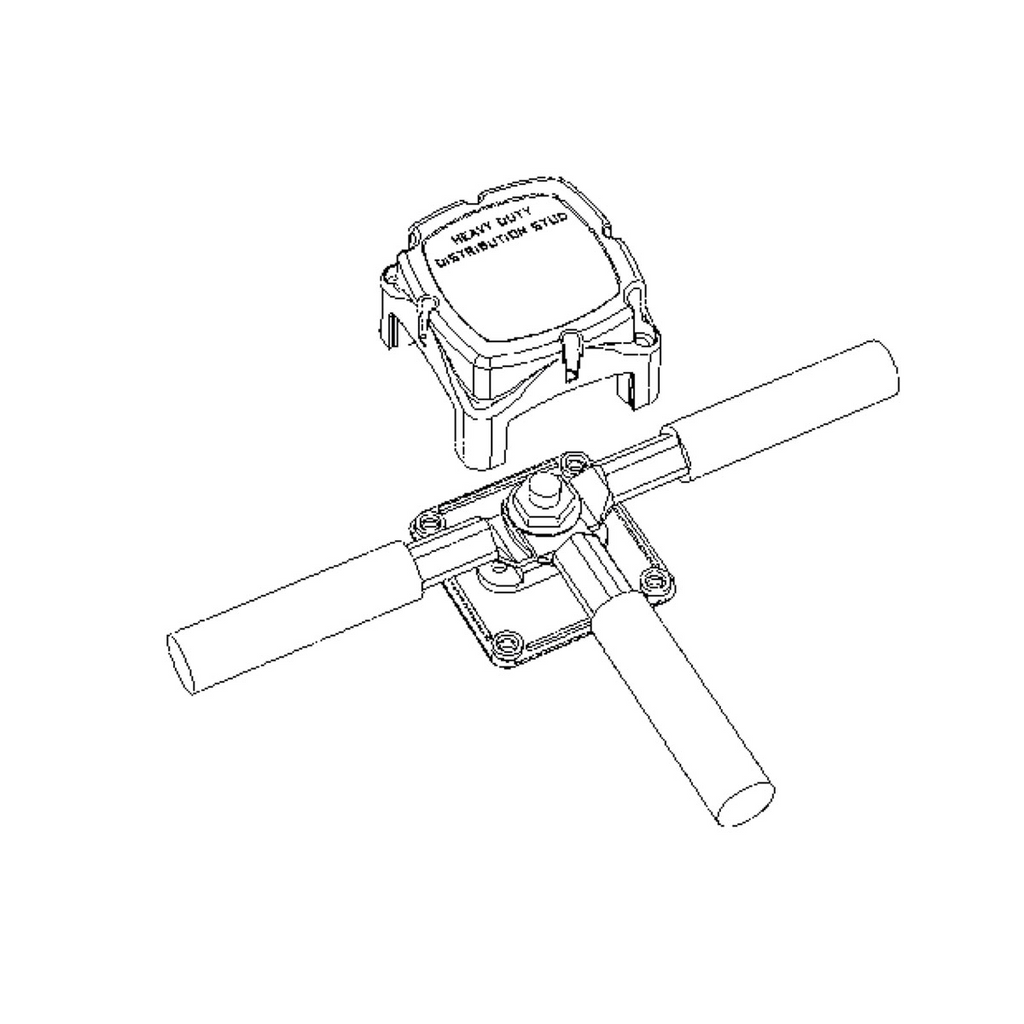

The Contour Distribution Stud allows termination of heavy duty cables for one or more connections. Removable side plates allow for connections from all sides.
Designed to match all other Contour power distribution products with modular sizing and lock mouldings to facilitate easy grouping. Meets ABYC standards for exposed terminals.
A secondary buss may be fitted to the distribution stud to provide connections for smaller wires without cluttering the main stud (refer 113562 below).
| BLA CODE | STUD DIA. MM | BASE MM | HEIGHT MM | MOUNT SCREWS MM |
|---|
| 113558 | 10 | 69 x 69 | 50 | 5 r/h |

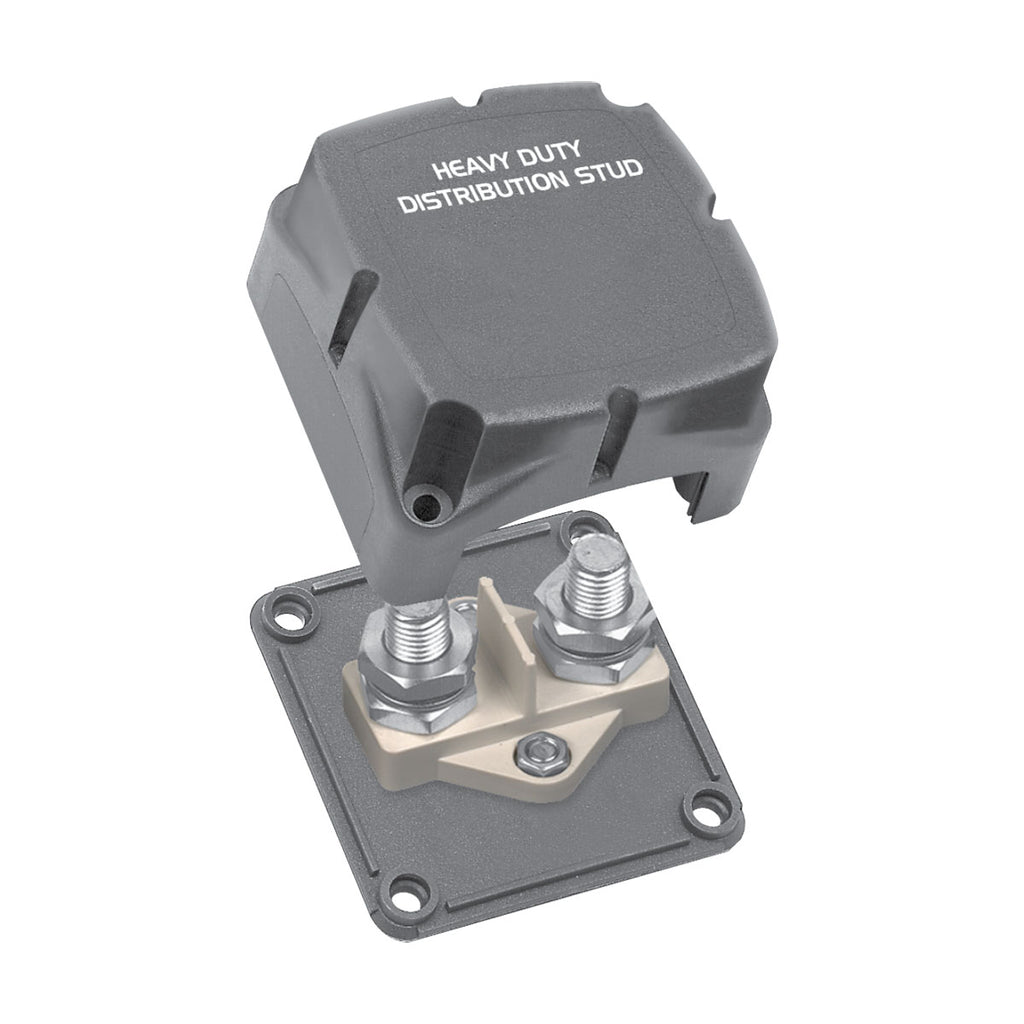

| 113559 | 2 x 10 | 69 x 69 | 50 | 5 r/h |
