Description

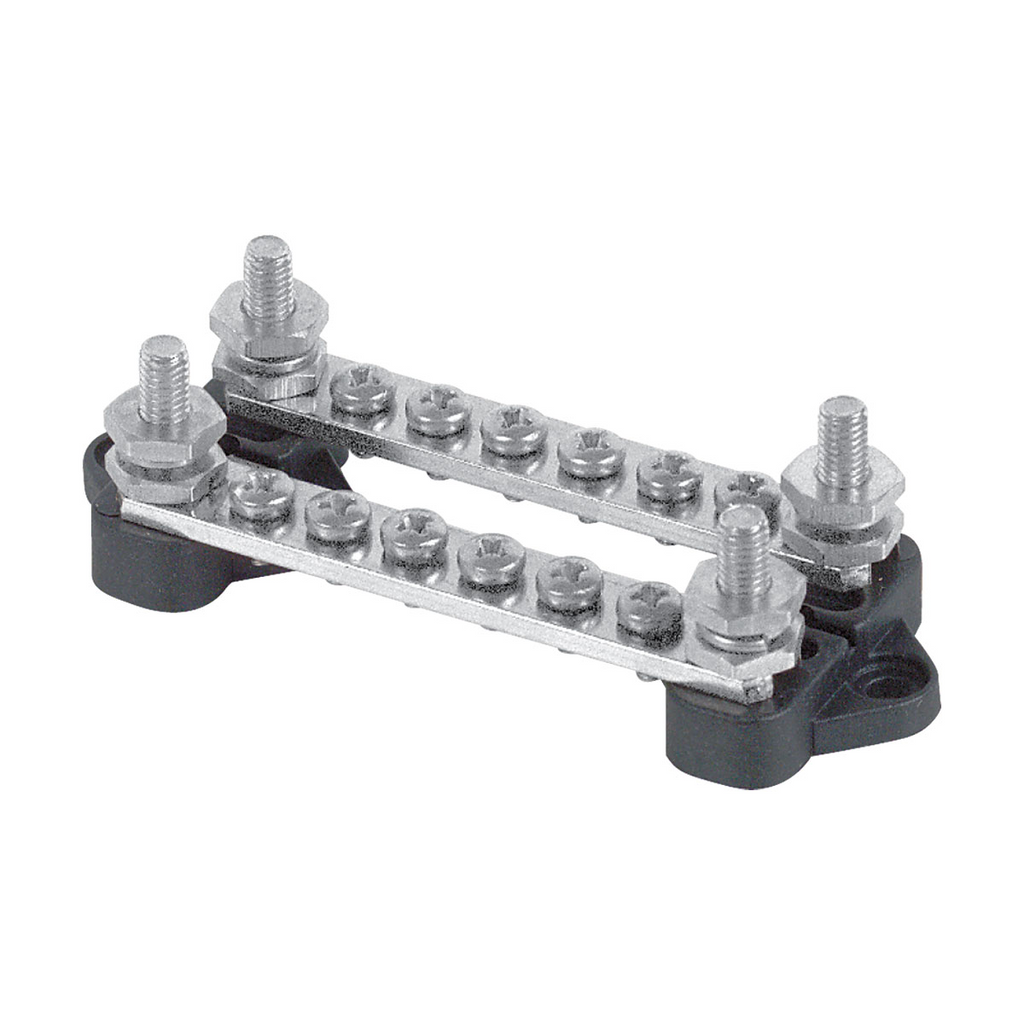

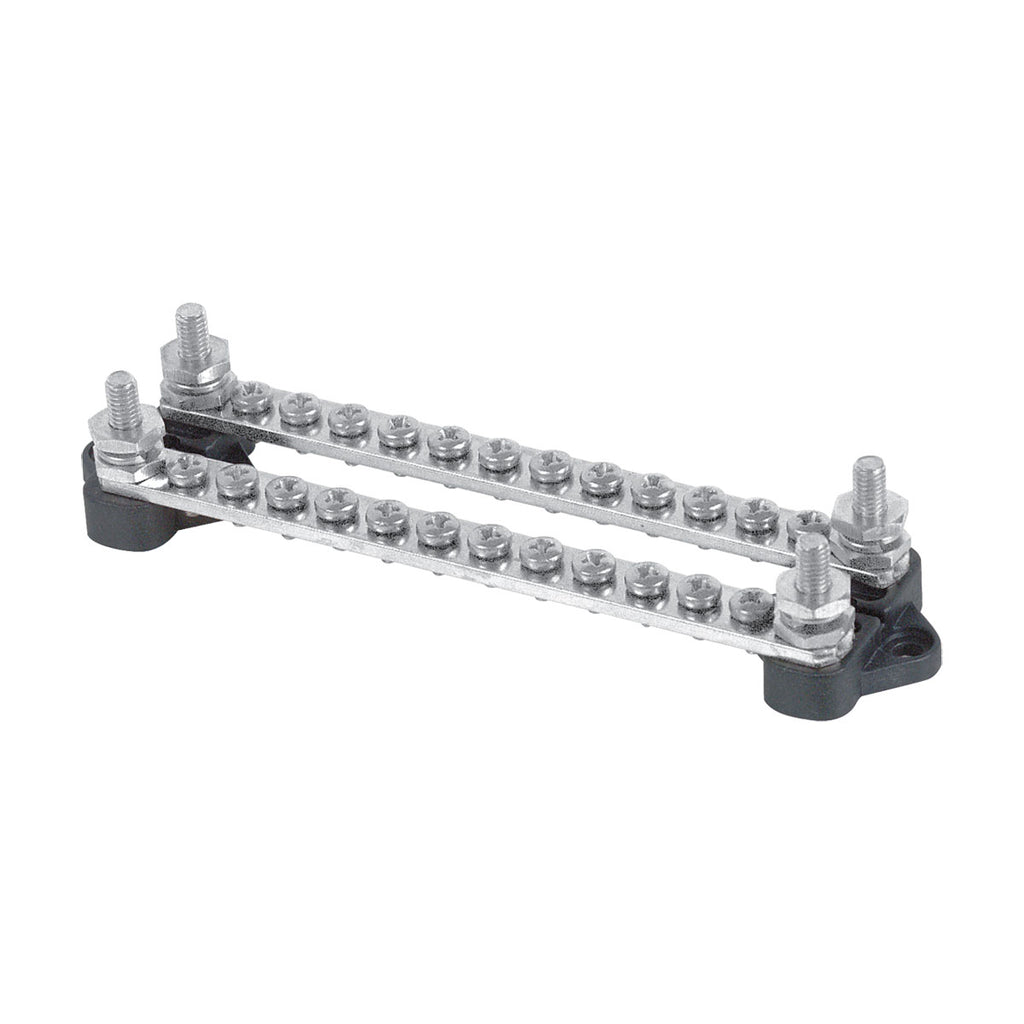

Tin plated brass busbars with twin rows of terminals and insulated mounting bases to enable both positive and negative DC, or earth and neutral buses on one block. Alternatively the rows may be bridged to increase capacity.
Twin busbars accept the same colour coded covers on each row as the single busbars. Meets ABYC standards.
| BLA CODE | TAKE OFFS | BASE MM | HEIGHT MM | CURRENT RATING | OUTPUT SCREWS MM | INPUT STUDS MM |
|---|
| 113505 | 2 x 6 | 100 | 42 | 100 | 4 | 6 |
| 113507 | 2 x 12 | 160 | 42 | 100 | 4 | 6 |
